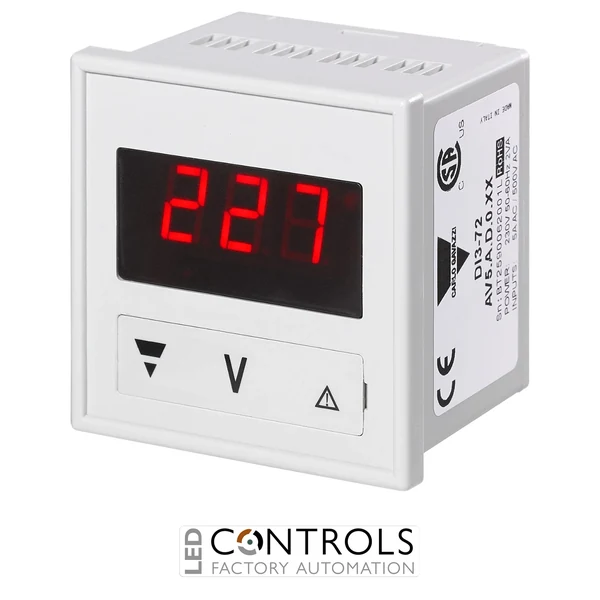

Why Choose the Carlo Gavazzi DI372AV5AD0XX Digital Panel Meter?
The Carlo Gavazzi DI372AV5AD0XX is a high quality digital AC ammeter and voltmeter designed for accurate monitoring of electrical parameters in industrial control panels. Part of the trusted Carlo Gavazzi DI3-72 AV5 series, this microprocessor-based panel meter provides clear digital indication of AC current and voltage measurements for a wide range of industrial and commercial applications.
Featuring a bright 3-digit LED display, selectable CT and VT primary ranges, and a compact 72 x 72 mm panel mounting format, the DI372AV5AD0XX enables reliable electrical measurement while simplifying installation into new or existing control panels.
Designed for operation from a 230 V AC power supply, this panel meter measures direct AC currents up to 5 A or voltages up to 500 V AC, while also supporting external current transformers and voltage transformers for monitoring larger electrical systems.
Key Advantages
- Microprocessor-based digital AC ammeter and voltmeter.
- Large 3-digit high visibility LED display.
- Measures AC current up to 5 A and AC voltage up to 500 V.
- Selectable CT and VT primary ranges for flexible installations.
- Compact 72 x 72 mm panel mounting design.
- Reliable industrial performance with excellent measurement accuracy.
Key Features
- Carlo Gavazzi DI3-72 AV5 series.
- 3-digit red LED display.
- 5 A / 500 V AC direct measurement capability.
- 230 V AC supply voltage.
- Selectable CT and VT scaling using DIP switches.
- 0.5% full scale measurement accuracy.
- 72 x 72 mm front panel mounting.
- Screw terminal connections for secure installation.
Accurate Electrical Measurement for Industrial Panels
The Carlo Gavazzi DI372AV5AD0XX provides dependable monitoring of AC electrical systems, allowing engineers and maintenance personnel to quickly verify current and voltage levels. The bright LED display ensures excellent readability while selectable scaling enables the meter to operate with a wide range of current and voltage transformers.
Its compact panel-mounted construction makes it suitable for electrical switchboards, distribution equipment, motor control centres and industrial automation panels where reliable indication of electrical values is essential.
Typical Applications
- Industrial electrical switchboards.
- Motor control centres.
- Power distribution panels.
- Building services monitoring.
- OEM control panels.
- Industrial automation systems.
