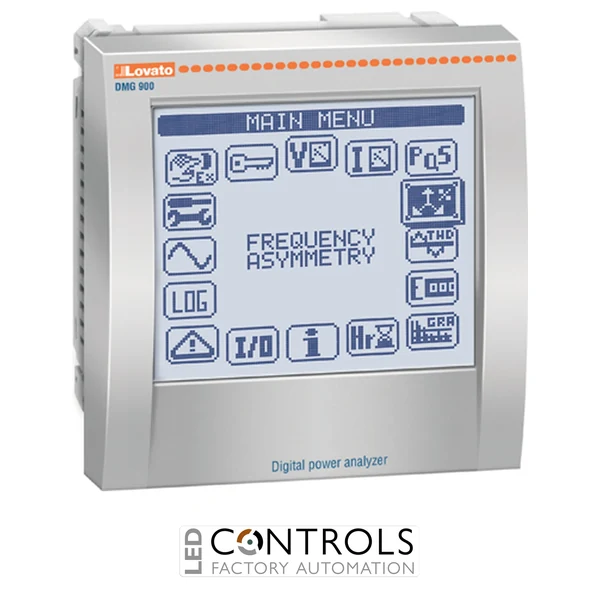

Why Choose the Lovato DMG900D048 Digital Power Analyser?
The Lovato DMG900D048 is an advanced flush-mounted multifunction digital power analyser designed for detailed monitoring of single-phase and three-phase electrical networks. Its high-resolution 128 × 112 pixel graphic touch-screen LCD, precise True RMS measurement and comprehensive power-quality functions make it suitable for demanding industrial, commercial and infrastructure applications.
The DMG900D048 measures voltage, current, active power, reactive power, apparent power, frequency, power factor, electrical energy and harmonic distortion. Individual voltage and current harmonic analysis up to the 63rd harmonic order helps engineers identify waveform distortion, neutral loading and power-quality issues caused by variable speed drives, UPS equipment and other non-linear loads.
This version operates from a nominal 12, 24 or 48 V DC auxiliary supply, making it particularly suitable for battery-backed control panels, substations, renewable energy systems and industrial automation installations. The analyser supports external 1 A or 5 A current transformers and can be expanded using compatible Lovato EXP modules. The DMG900D048 is listed as out of catalogue, so contact LED Controls to discuss remaining availability or a suitable replacement.
Key Advantages
- Advanced multifunction digital power analyser.
- Nominal 12, 24 or 48 V DC auxiliary supply.
- Intuitive 128 × 112 pixel touch-screen display.
- Accurate True RMS voltage and current measurement.
- Individual harmonic analysis up to the 63rd order.
- Compatible with external 1 A or 5 A current transformers.
- Class 0.5S active energy accuracy.
- Expandable using compatible Lovato EXP modules.
Key Features
- Lovato DMG900D048 digital power analyser.
- 96 × 96 mm flush-mounted housing.
- 128 × 112 pixel graphic touch-screen LCD.
- White backlighting with four grey levels.
- Built-in acoustic buzzer.
- True RMS voltage and current measurement.
- Active, reactive and apparent power monitoring.
- Active and reactive electrical energy measurement.
- Total and displacement power factor monitoring.
- Maximum-demand and load-profile functions.
- Individual voltage and current harmonic analysis up to the 63rd order.
- Four galvanically isolated current channels.
- Neutral current and neutral-to-earth voltage measurement.
- Expandable using up to four Lovato EXP modules.
Advanced Power Analysis for DC Supplied Systems
The Lovato DMG900D048 provides comprehensive electrical-network analysis for installations where the monitoring instrument must operate from a low-voltage DC control supply. Its True RMS technology delivers dependable measurements in networks containing distorted waveforms, while the fourth current input allows neutral-current monitoring in three-phase four-wire systems.
Detailed harmonic analysis and event monitoring help engineers investigate overheating, nuisance tripping, excessive neutral current and reduced equipment efficiency. Optional EXP modules can add RS485, Ethernet, digital inputs, relay outputs and other functions for integration with PLCs, SCADA platforms and energy-management systems.
Typical Applications
- Industrial switchboards and control panels.
- Battery-backed automation systems.
- Electrical substations and utility panels.
- Renewable energy and energy-storage installations.
- Motor control centres.
- Generator and transformer monitoring.
- Power-quality and harmonic analysis.
- Energy-management and supervisory systems.
