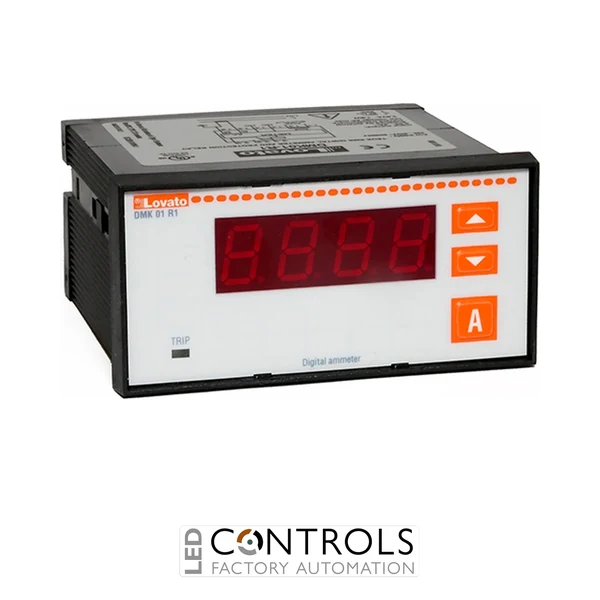

Lovato DMK01R1 single-phase True RMS digital ammeter with a 5 A current transformer input, minimum and maximum current memory and programmable relay output for control and protection.
SKU:DMK01R1MPN:DMK01R1
Price
List Price£147.03ex VAT
Your Price (ex VAT)
£147.03
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the Lovato DMK01R1 Single-Phase Digital Ammeter?
The Lovato DMK01R1 is a compact and reliable single-phase digital ammeter designed for accurate AC current monitoring, control and protection in industrial switchboards, machinery panels and electrical distribution systems. It displays the present current together with stored minimum and maximum values, helping operators monitor equipment loading and identify abnormal operating conditions.
The instrument uses True RMS measurement to provide dependable readings, including in circuits affected by waveform distortion from variable speed drives, electronic power supplies and other non-linear loads. It is designed for connection through an external current transformer with a 5 A secondary, allowing primary currents up to 10,000 A to be displayed when the correct CT ratio is programmed.
Unlike the standard DMK01, the DMK01R1 incorporates a programmable relay output for control and protection functions. The relay can operate alarms, contactors or control circuits when configured current thresholds are reached. Its compact 96 × 48 mm panel-mounted format makes it suitable for professional switchboard and control-panel installations.
Key Advantages
Accurate single-phase AC current monitoring.
True RMS measurement for reliable readings on distorted waveforms.
Displays present, minimum and maximum current values.
Includes a programmable relay output for control, alarm and protection functions.
Compatible with external current transformers featuring a 5 A secondary.
Programmable CT ratio supports primary current readings up to 10,000 A.
Compact 96 × 48 mm flush-mounted design.
Key Features
Lovato DMK digital metering instrument series.
Single-phase digital AC ammeter.
One programmable relay output.
5 A rated current input.
0.05 to 5.75 A current input measurement range.
Programmable primary current range up to 10,000 A.
True RMS measuring method.
Present, minimum and maximum current indication.
Programmable current transformer ratio.
220 to 240 V AC auxiliary supply.
LED display for clear panel-side readings.
Current Monitoring with Programmable Relay Control
Digital panel ammeters provide continuous indication of electrical current, helping engineers monitor equipment loading, identify overload conditions and assess changing demand within an installation. Recording minimum and maximum current values also makes it easier to investigate operating peaks that occur between routine inspections.
The programmable relay output allows the Lovato DMK01R1 to perform more than basic current indication. It can activate an external warning, switch a contactor or interface with a control system when the measured current crosses configured thresholds, making it suitable for overload supervision, undercurrent detection and general process protection.
Typical Applications
Industrial switchboards and electrical distribution panels.
Motor control centres and machinery panels.
Motor overload and underload monitoring.
Pump, fan and compressor systems.
Generator and power supply monitoring.
Alarm and protective control circuits.
Manufacturing and process equipment.
Current monitoring through external 5 A current transformers.
Technical Specifications
Tick the specs you need, then view products that match.
Measurement Functions
Current
Phase
Single Phase
Cut-Out Size (mm)
91 × 45 mm
Coil / Supply Voltage
220–240 V AC
Device Type
Ammeter / voltmeter
Manufacturer
Lovato Electric
Series
DMK
Model
DMK01R1
Product type
Single-phase digital ammeter
Measurement
AC current
Displayed values
Present, maximum and minimum current
Measurement method
True RMS
Rated current input
5 A
Current input range
0.05 to 5.75 A
Primary display range
Up to 10,000 A with suitable CT
Current input type
External low-voltage current transformer with 5 A secondary
Current accuracy
±0.5% full scale ±1 digit
Current input frequency
45 to 66 Hz
Overload capacity
120% of rated current
Auxiliary supply voltage
220 to 240 V AC
Auxiliary supply frequency
50 / 60 Hz
Maximum power consumption
3.6 VA
Maximum power dissipation
1.8 W
Relay output
1 programmable relay
Relay function
Control, alarm and protection
Display type
LED
Installation type
Flush panel mounting
Front dimensions
96 × 48 mm
Panel cut-out
approximately 91 × 45 mm
Maximum terminal tightening torque
0.8 N·m
Operating temperature
-20 to +60 °C
Weight
approximately 323 g
Applicable standard
IEC/EN 61010-1
HS Code
90303100
Frequently Asked Questions
What does the Lovato DMK01R1 measure?
The DMK01R1 measures single-phase AC current and displays the present, minimum and maximum measured values.
Does the DMK01R1 require a current transformer?
Yes. It is designed for connection to an external current transformer with a 5 A secondary output.
What is the current input range of the DMK01R1?
The direct current input measurement range is approximately 0.05 to 5.75 A.
What is the programmable relay used for?
The relay can operate an external alarm, contactor or control circuit when the measured current reaches configured thresholds.
Does the DMK01R1 use True RMS measurement?
Yes. The instrument uses True RMS measurement to provide dependable readings, including on distorted current waveforms.
What maximum primary current can the DMK01R1 display?
When used with a suitable external current transformer and the correct programmed ratio, the meter can display primary currents up to approximately 10,000 A.
