EM21072DAV53HOXPFAP – Energy meter power supply 65V-400VAC

Q: Does this energy analyser include Modbus communication?

No. The EM21072DAV53HOXPFAP provides an integrated pulse output for energy monitoring and pulse counting applications.

Q: Does this model require current transformers?

Yes. This model uses 5 A current transformer inputs, making it suitable for CT-based measurement of larger three-phase electrical loads.

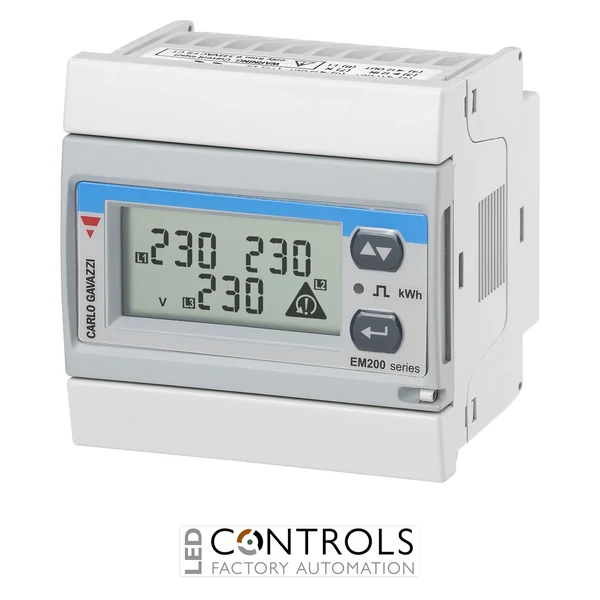

Carlo Gavazzi EM21072DAV53HOXPFAP three-phase MID energy analyser with 5 (6) A CT input, pulse output and panel mounting for commercial and industrial energy monitoring.

SKU: EM21072DAV53HOXPFAPMPN: EM21072DAV53HOXPFAP

List Price £251.37 ex VAT

Your Price (ex VAT)

£251.37

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £251.37

Trade pricing is personalised to your account

Manufacturer Lead Time

£251.37

Why Choose the Carlo Gavazzi EM21072DAV53HOXPFAP MID Energy Analyser?

The Carlo Gavazzi EM21072DAV53HOXPFAP is a compact and highly accurate three-phase MID-certified energy analyser designed for commercial, industrial and building energy monitoring applications. As part of the advanced Carlo Gavazzi EM210 MID series, it provides precise energy measurement with an integrated pulse output for seamless integration into energy monitoring, pulse counting and automation systems.

Designed for 72 × 72 mm panel mounting, the EM21072DAV53HOXPFAP supports three-phase 3-wire and 4-wire electrical systems using 5 A current transformer inputs. MID approval makes it suitable for approved fiscal metering, while the removable LCD display simplifies installation, commissioning and maintenance.

Supporting voltage inputs of 220/380 V, 230/400 V and 240/415 V AC, this energy analyser measures imported active energy together with key electrical parameters including voltage, current, power, frequency and power factor. The integrated pulse output allows energy data to be transmitted to external counters and monitoring equipment for accurate consumption tracking.

Key Advantages

Compact three-phase MID-certified energy analyser.
Suitable for 3-phase 3-wire and 4-wire electrical systems.
5 (6) A current transformer input for CT-based metering.
Integrated pulse output for energy monitoring systems.
MID certified for approved fiscal metering applications.
72 × 72 mm panel mounting for straightforward installation.

Key Features

Carlo Gavazzi EM210 MID Series.
Three-phase energy analyser.
220/380 V, 230/400 V and 240/415 V AC voltage input.
5 (6) A CT current input.
Pulse output for energy retransmission.
Measures imported active energy.
MID certified for fiscal metering.
72 × 72 mm panel mounting with removable LCD display.

Reliable Three-Phase MID Metering with Pulse Output

The Carlo Gavazzi EM21072DAV53HOXPFAP provides accurate three-phase energy measurement for installations requiring approved fiscal metering and dependable electrical consumption monitoring. Its MID certification supports compliant billing and cost allocation, while CT-based measurement makes it suitable for larger electrical installations.

With a pulse output and compact panel-mounted enclosure, the EM21072DAV53HOXPFAP offers a practical solution for electrical contractors, panel builders and facilities engineers working on commercial metering, industrial energy monitoring and energy efficiency projects.

Typical Applications

Commercial building energy monitoring.
Tenant billing and energy cost allocation.
Industrial control panels and switchboards.
Electrical distribution systems.
Energy efficiency monitoring projects.
Pulse-based energy monitoring systems.

Technical Specifications

Tick the specs you need, then view products that match.

Voltage	400 V
Manufacturer	Carlo Gavazzi
Series	EM210 MID
Model	EM21072DAV53HOXPFAP
Product type	Three-phase MID energy analyser
Voltage input	220/380 V, 230/400 V, 240/415 V AC
Network type	3-phase 3-wire / 3-phase 4-wire
Current input	5 (6) A via current transformers
Frequency	50 Hz
Energy metering	Consumption
Communication	None
Output	Pulse output
Power supply	Self-powered (65 to 400 V AC)
Accuracy class	Class B (EN50470-3), Class 1 active energy
Approvals	CE, MID, UKCA
Mounting type	72 × 72 mm panel mounting
Protection rating	IP40 (front)

Frequently Asked Questions

What is the Carlo Gavazzi EM21072DAV53HOXPFAP used for?

It is used for accurate three-phase energy monitoring, MID-approved fiscal metering, sub-metering and electrical consumption analysis in commercial and industrial installations.

Does this energy analyser include Modbus communication?

No. The EM21072DAV53HOXPFAP provides an integrated pulse output for energy monitoring and pulse counting applications.

Does this model require current transformers?

Yes. This model uses 5 A current transformer inputs, making it suitable for CT-based measurement of larger three-phase electrical loads.

Is the EM21072DAV53HOXPFAP MID certified?

Yes. This model is MID certified, making it suitable for approved fiscal metering and compliant energy billing applications.

Where is this energy analyser typically installed?

It is designed for 72 × 72 mm panel mounting inside switchboards, metering panels and industrial control panels.

Trusted by Energy Management Professionals Worldwide

Carlo Gavazzi EM210 MID energy analysers are trusted by electrical contractors, panel builders and facilities engineers worldwide for accurate three-phase energy measurement, dependable pulse output integration and compliant fiscal metering.

Voltage	400 V
Manufacturer	Carlo Gavazzi
Series	EM210 MID
Model	EM21072DAV53HOXPFAP
Product type	Three-phase MID energy analyser
Voltage input	220/380 V, 230/400 V, 240/415 V AC
Network type	3-phase 3-wire / 3-phase 4-wire
Current input	5 (6) A via current transformers
Frequency	50 Hz
Energy metering	Consumption
Communication	None
Output	Pulse output
Power supply	Self-powered (65 to 400 V AC)
Accuracy class	Class B (EN50470-3), Class 1 active energy
Approvals	CE, MID, UKCA
Mounting type	72 × 72 mm panel mounting
Protection rating	IP40 (front)
