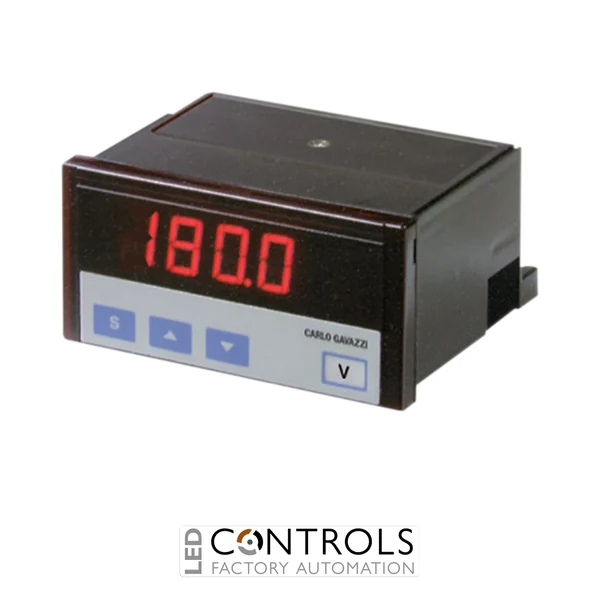

Why Choose the Carlo Gavazzi LDI35AV2C1XXXX Digital Panel Meter?
The Carlo Gavazzi LDI35AV2C1XXXX is a compact and reliable digital panel meter and controller designed for accurate AC and DC current and voltage measurement in industrial control panels, machinery and automation systems. As part of the Carlo Gavazzi LDI35 series, it provides a clear 3 1/2 digit display in a standard 48 x 96 mm panel mounting format.
This model is suitable for applications where operators need dependable local indication of electrical values from AC or DC circuits. Its integrated relay output also allows the unit to support alarm, signalling and basic control functions, making it useful in machine monitoring, process instrumentation and panel control systems.
With a 115 V AC power supply, AC/DC current measurement up to 5 A, AC/DC voltage measurement up to 20 V, 100 V, 200 V and 500 V and 1 relay output, the LDI35AV2C1XXXX provides flexible measurement and control capability in a compact panel-mounted design.
Key Advantages
- Reliable digital panel meter and controller for AC and DC measurement.
- 3 1/2 digit display for clear local indication.
- 48 x 96 mm panel mounting format suitable for industrial control panels.
- Measures AC and DC current up to 5 A.
- Measures AC and DC voltage up to 500 V.
- Includes 1 relay output for alarm, signalling or control functions.
- 115 V AC power supply for industrial panel installations.
Key Features
- Carlo Gavazzi LDI35 digital panel meter series.
- AC/DC ammeter and voltmeter functionality.
- 3 1/2 digit LED display read-out.
- 48 x 96 mm front panel size.
- 115 V AC auxiliary supply.
- AC/DC current input up to 5 A.
- AC/DC voltage input ranges up to 20 V, 100 V, 200 V and 500 V.
- 1 relay output for setpoint, alarm or controller applications.
- Panel-mounted design for control cabinets and machine panels.
Flexible AC/DC Measurement with Relay Control
Digital panel meters such as the Carlo Gavazzi LDI35AV2C1XXXX provide clear indication of measured electrical values directly on the front of a control panel. This allows operators and maintenance teams to monitor current and voltage levels quickly without needing separate handheld test equipment.
The integrated relay output enables the unit to support setpoint-based alarm or switching functions. This makes the LDI35AV2C1XXXX suitable for mixed AC/DC electrical environments, machine panels, process systems, power monitoring circuits and general industrial instrumentation.
Typical Applications
- Industrial control panels and automation cabinets.
- AC and DC current monitoring.
- AC and DC voltage indication.
- Machine monitoring and process instrumentation.
- Alarm, relay and setpoint control applications.
- Panel-mounted electrical measurement displays.
