Why Choose the Carlo Gavazzi LDM35HHSXH1XXXX Digital Panel Meter?

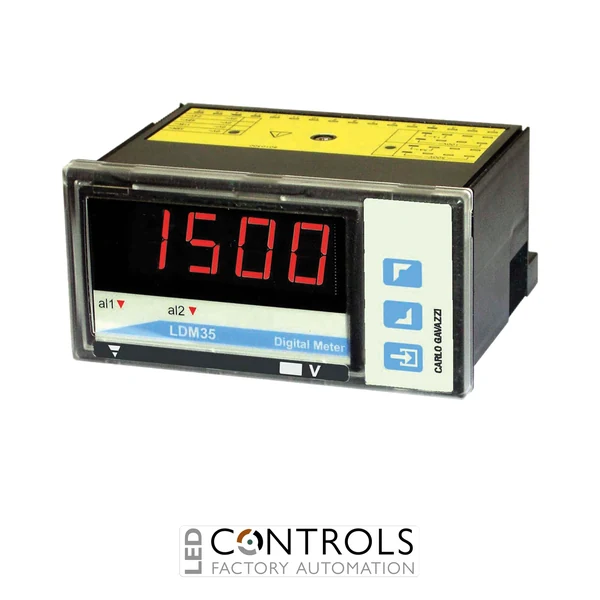

The Carlo Gavazzi LDM35HHSXH1XXXX is a versatile digital panel meter and controller designed for TRMS AC and DC current and voltage measurement in industrial control panels, switchgear assemblies and automation systems. As part of the Carlo Gavazzi LDM35H series, it combines clear local indication with programmable measurement functions and relay output control.
This microprocessor-based panel meter is ideal for engineers, panel builders and machine manufacturers requiring accurate measurement, easy configuration and dependable operation. Its 3 1/2 digit red LED display provides clear visibility, while the standard 48 x 96 mm panel mounting format enables straightforward installation into control cabinet doors and operator panels.
With AC and DC input capability, a current measuring range up to 5 A, a voltage measuring range up to 500 V, one relay output and a wide 90-260 V AC/DC power supply, the LDM35HHSXH1XXXX is well suited to industrial monitoring, alarm indication and control panel instrumentation.
Key Advantages
- Programmable digital panel meter and controller for current and voltage monitoring.
- TRMS AC and DC measurement for flexible industrial applications.
- 3 1/2 digit LED display with red characters for clear read-out.
- Current input up to 5 A and voltage input up to 500 V.
- One relay output for alarm or control functions.
- 90-260 V AC/DC power supply for wide installation compatibility.
Key Features
- Carlo Gavazzi LDM35H digital panel meter series.
- TRMS AC and DC ammeter and voltmeter function.
- 3 1/2 digit LED display.
- Panel mounting 48 x 96 mm housing.
- ±5 A current measuring range.
- ±500 V voltage measuring range.
- Programmable measuring ranges and functions.
- Single relay output for alarm or control signalling.
Reliable Measurement and Control for Industrial Panels
Digital panel meters such as the Carlo Gavazzi LDM35HHSXH1XXXX provide clear local indication of electrical values while supporting programmable control and alarm functions. This allows engineers and operators to monitor AC and DC current or voltage directly from the control panel and use relay output signalling for process or safety-related alerts.
The LDM35H series is designed for industrial instrumentation where accuracy, flexibility and robust panel mounting are essential. With programmable ranges, min-max storage functionality and IP65 front protection, this model is well suited to demanding panel building, machinery and electrical monitoring applications.
Typical Applications
- Industrial control panels and switchgear assemblies.
- AC and DC voltage and current monitoring.
- Alarm and relay signalling applications.
- Machine building and OEM equipment.
- Power distribution monitoring.
- Process control and automation systems.
