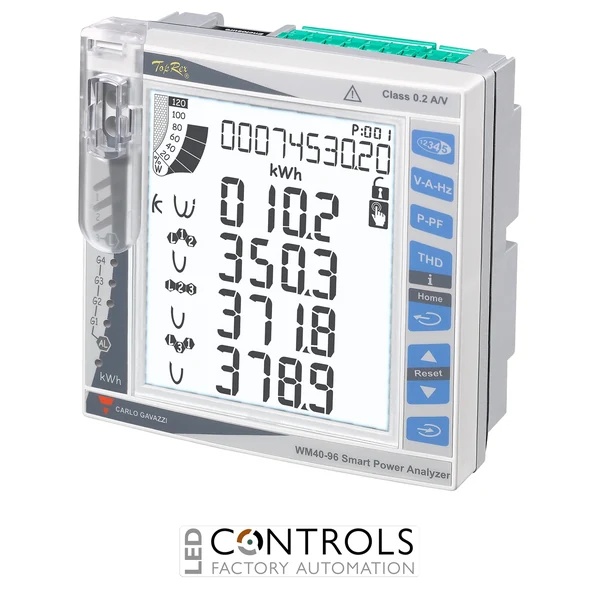

Why Choose the Carlo Gavazzi WM40AV53L Power Analyser?
The Carlo Gavazzi WM40AV53L is a modular three-phase power analyser designed for accurate electrical measurement, energy monitoring and power quality analysis in industrial and commercial installations. As part of the Carlo Gavazzi WM40 series, it provides comprehensive monitoring of electrical systems while supporting optional communication and I/O modules for seamless integration into automation and energy management platforms.
Designed for installation in switchboards and control panels, the WM40AV53L delivers precise measurement of voltage, current, active and reactive power, energy consumption and harmonic distortion. Its modular architecture enables expansion with optional communication interfaces and input/output modules, allowing the analyser to adapt to a wide range of monitoring applications.
Supporting 220–400 V L-N and 380–690 V L-L electrical systems with 5 A current transformer inputs, the WM40AV53L is supplied by a 24–48 V AC/DC auxiliary power supply. It is ideally suited to industrial machinery, building management systems and electrical distribution panels requiring reliable energy measurement and system diagnostics.
Key Advantages
- Modular three-phase power analyser for comprehensive electrical monitoring.
- 220–400 V L-N and 380–690 V L-L voltage measurement capability.
- 5 (6) A current transformer input for industrial applications.
- 24–48 V AC/DC auxiliary supply for flexible installation.
- Expandable with optional communication and I/O modules.
- Ideal for industrial energy management, automation and building monitoring systems.
Key Features
- Carlo Gavazzi WM40 modular power analyser series.
- Three-phase network analysis and energy monitoring.
- 220–400 V L-N voltage input range.
- 380–690 V L-L voltage input range.
- 5 (6) A current transformer input.
- 24–48 V AC/DC auxiliary power supply.
- Optical programming port for fast configuration.
- Supports optional RS485, Ethernet, BACnet and Profibus communication modules.
Reliable Monitoring for Industrial Power Systems
The Carlo Gavazzi WM40AV53L continuously measures essential electrical parameters, allowing engineers and maintenance teams to monitor energy consumption, detect abnormal operating conditions and optimise system performance. Its advanced measurement capabilities support preventative maintenance and improved operational efficiency across industrial and commercial installations.
The WM40 modular platform can be expanded using dedicated communication and I/O modules, enabling straightforward integration into SCADA systems, building management systems and industrial automation networks. This flexibility makes the analyser suitable for both new installations and retrofit projects.
Typical Applications
- Industrial electrical distribution panels.
- Energy management and monitoring systems.
- Building management systems.
- Automation and process control panels.
- Commercial and industrial switchboards.
- Power quality monitoring and energy analysis.
