Lovato Electric KBA1L11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£30.93

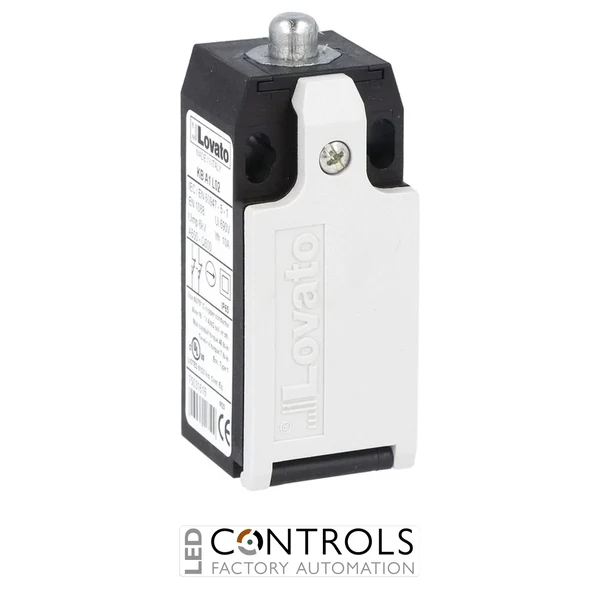

The Lovato KBA1L11 is a reliable K Series industrial limit switch designed for accurate position detection and mechanical control applications in automation systems. Featuring a top push rod plunger actuator, this compact switch provides dependable switching performance for industrial machinery, production equipment and control applications.
The KBA1L11 features a durable polymer thermoplastic housing, a metal plunger actuator and 1NO + 1NC slow action contacts. Its EN 50047 compliant design and bottom M20 cable entry allow straightforward installation in industrial environments requiring reliable mechanical feedback.
With an IP65 protection rating, 10 A rated thermal current and a compact construction, the Lovato KBA1L11 provides dependable operation for machine builders, maintenance engineers and automation professionals.
Limit switches such as the Lovato KBA1L11 provide reliable mechanical feedback by detecting the movement or position of machine components. They are widely used where repeatable switching performance and robust operation are required.
The Lovato K Series limit switch range is designed for quick installation, easy wiring, modular configuration and dependable industrial performance, making it suitable for machine builders and automation engineers.
| Weight [g] | 67 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975113523 |
| Product designation | Top push rod plunger |
| Product type designation | KBA |
| Housing | Polymer thermoplastic |
| Rod | Aluminium-zinc alloy |
| Type of contact | 1NO+1NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBA1L11 is a limit switch used for mechanical position detection in industrial automation and machinery applications.
The KBA1L11 features a top push rod plunger actuator with metal plunger.
The switch includes 1 normally open and 1 normally closed slow action contact.
The Lovato KBA1L11 features an IP65 protected housing for industrial environments.
The switch uses an M20 bottom cable entry connection.
Lovato K Series limit switches provide reliable mechanical switching solutions for automation engineers, machine builders and industrial control systems.
