Lovato Electric KBA1L12 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£45.74

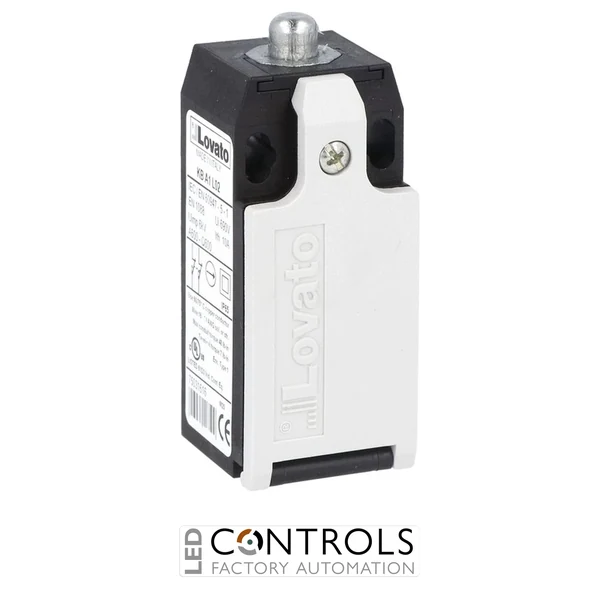

The Lovato Electric KBA1L12 is a reliable and compact limit switch designed for accurate position detection and control in industrial automation, machinery and electrical control applications. Part of the Lovato K series limit switch range, it provides dependable switching performance with a robust construction suitable for demanding industrial environments.
Featuring a top push rod plunger actuator, polymer thermoplastic housing and a metal plunger mechanism, the KBA1L12 delivers precise mechanical operation for machine position monitoring and safety control systems. Its compact design allows straightforward integration into industrial equipment where reliable end-position detection is required.
The KBA1L12 limit switch includes 1NO + 2NC slow action contacts, an M20 bottom cable entry and compliance with recognised industrial standards including EN 50047 and IEC/EN 60947-5-1. This makes it suitable for a wide range of automation, machinery and control panel applications.
Limit switches such as the Lovato Electric KBA1L12 provide dependable mechanical feedback by detecting the movement or position of machine components. They are commonly used to monitor travel limits, activate control sequences and improve operational safety within automated equipment.
The KBA1L12 combines a compact form factor with durable materials and flexible contact arrangements, allowing engineers to integrate it into machinery, control panels and industrial automation systems where accurate switching performance is essential.
| Weight [g] | 70 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975113530 |
| Product designation | Top push rod plunger |
| Product type designation | KBA |
| Housing | Polymer thermoplastic |
| Rod | Aluminium-zinc alloy |
| Type of contact | 1NO+2NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The KBA1L12 is a limit switch used for detecting the position or movement of mechanical components in industrial automation and machinery applications.
The KBA1L12 features a top push rod plunger actuator with a metal plunger for reliable mechanical switching operation.
The Lovato KBA1L12 provides 1NO + 2NC slow action contacts for flexible integration into control circuits.
The KBA1L12 uses an M20 bottom cable entry for straightforward electrical connection.
The KBA1L12 is typically installed on industrial machinery, automation equipment and electrical control systems requiring reliable position detection.
Lovato Electric K series limit switches are designed to provide reliable mechanical switching, accurate position detection and dependable performance in industrial automation environments.
