Lovato Electric KBA1L21 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£45.74

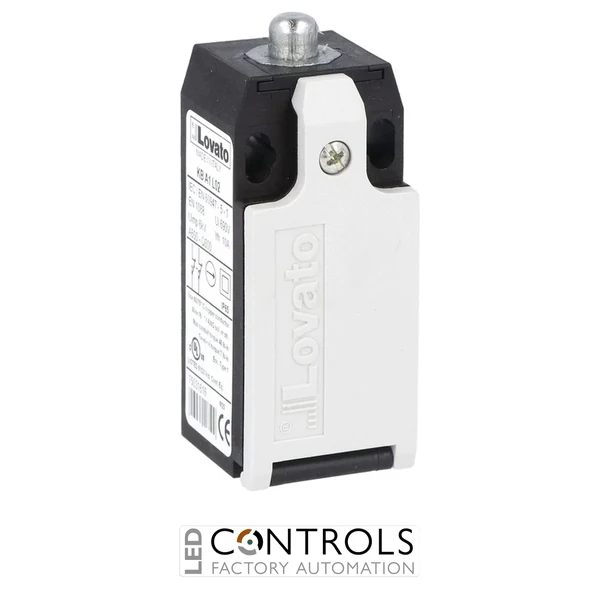

The Lovato Electric KBA1L21 is a compact and reliable industrial limit switch designed for precise position detection, machine control and automation applications. Part of the Lovato K series limit switch range, it provides dependable mechanical switching performance for industrial machinery, control systems and OEM equipment.
Featuring a top push rod plunger actuator, polymer thermoplastic housing and aluminium-zinc alloy metal plunger, the KBA1L21 delivers accurate operation and excellent durability in demanding industrial environments. Its compact EN 50047 compliant design enables easy installation and integration into a wide range of automation systems.
The KBA1L21 limit switch includes 2NO + 1NC slow action contacts and an M20 bottom cable entry, providing flexible switching options for industrial control circuits. With a 10 A thermal current rating and IP65 body protection, it is suitable for reliable position monitoring in machinery and automation applications.
Industrial limit switches such as the Lovato Electric KBA1L21 provide accurate mechanical feedback by detecting movement, travel limits and machine component positions. They are widely used in automated equipment to control sequences, improve operational reliability and support machine safety functions.
The KBA1L21 combines robust materials, flexible contact configuration and compact dimensions, making it suitable for integration into production machinery, electrical control panels and industrial automation systems.
| Weight [g] | 73 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975113554 |
| Product designation | Top push rod plunger |
| Product type designation | KBA |
| Housing | Polymer thermoplastic |
| Rod | Aluminium-zinc alloy |
| Type of contact | 2NO+1NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The KBA1L21 is an industrial limit switch used for detecting the position and movement of machine components in automation and control applications.
The KBA1L21 features a top push rod plunger actuator with a metal plunger for reliable mechanical switching operation.
The Lovato KBA1L21 provides 2 normally open and 1 normally closed slow action contacts for flexible industrial control applications.
The KBA1L21 uses an M20 bottom cable entry for straightforward electrical installation.
The KBA1L21 is typically installed on industrial machinery, automation equipment and electrical control systems requiring reliable position detection.
Lovato Electric K series limit switches provide reliable mechanical switching, accurate position detection and durable performance for modern industrial automation systems.
