Lovato Electric KBB1L02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£37.73
The Lovato Electric KBB1L02 is a compact and reliable industrial limit switch designed for accurate position detection and machine control applications. Part of the Lovato K series limit switch range, it provides dependable mechanical switching performance for industrial automation systems, production machinery and electrical control installations.

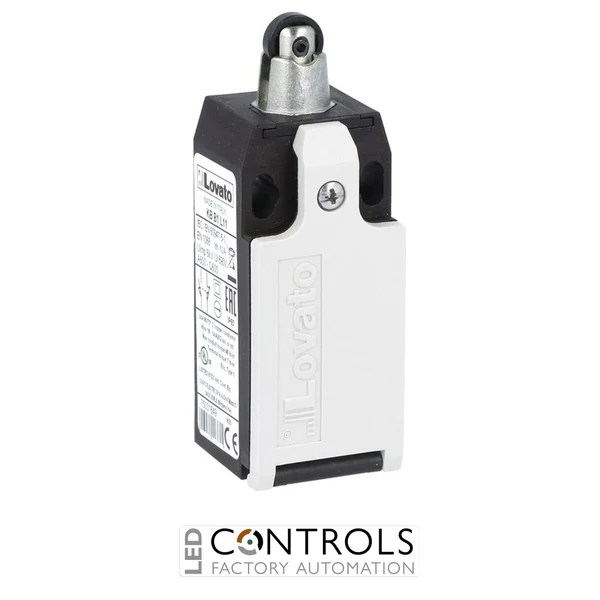

Featuring a top roller push plunger actuator with a plastic roller, polymer thermoplastic housing and EN 50047 compliant dimensions, the KBB1L02 delivers smooth mechanical operation and reliable position sensing in demanding industrial environments. The roller mechanism allows consistent actuation where moving machine components require guided mechanical contact.
The KBB1L02 limit switch includes 2NC slow action contacts, an M20 bottom cable entry and IP65 protection, making it suitable for reliable integration into industrial control circuits, automation equipment and OEM machinery applications.
Industrial limit switches such as the Lovato Electric KBB1L02 provide accurate mechanical feedback by detecting the position and movement of machine components. They are commonly used to monitor travel limits, control machine sequences and improve reliability in automated production equipment.
The KBB1L02 combines roller-based actuation, compact dimensions and dependable switching technology, making it suitable for integration into machinery, electrical control panels and industrial automation systems where accurate mechanical sensing is required.
| Weight [g] | 74 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975113592 |
| Product designation | Top roller push plunger |
| Product type designation | KBB |
| Housing | Polymer thermoplastic |
| Roller | Plastic |
| Type of contact | 2NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The KBB1L02 is an industrial limit switch used for detecting the position and movement of machine components in automation and control applications.
The KBB1L02 features a top roller push plunger actuator with a plastic roller for smooth mechanical operation.
The Lovato KBB1L02 provides 2 normally closed (2NC) slow action contacts for industrial control applications.
The KBB1L02 uses an M20 bottom cable entry for straightforward electrical installation.
The KBB1L02 is typically installed on industrial machinery, automation equipment and electrical control systems requiring reliable position detection.
Lovato Electric K series limit switches provide reliable mechanical switching, accurate position detection and durable performance for modern industrial automation systems.
