Lovato Electric KBC1L11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£36.34

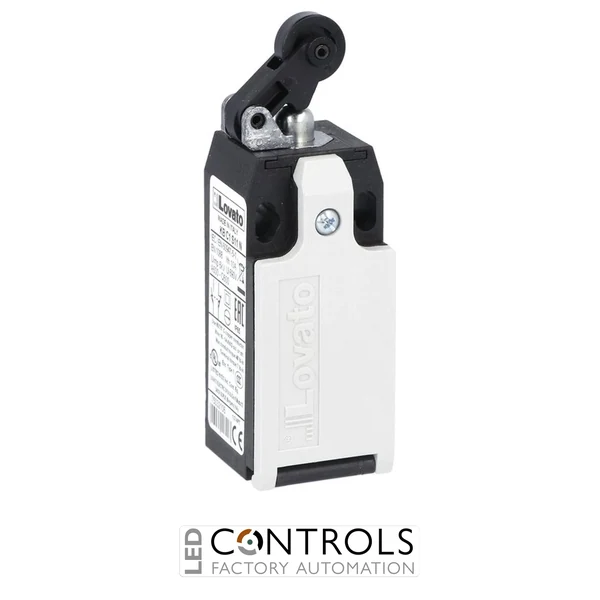

The Lovato Electric KBC1L11 is a compact and reliable industrial limit switch designed for accurate position detection, machine control and automation applications. Part of the Lovato K series limit switch range, it provides dependable mechanical switching performance for industrial machinery, production equipment and electrical control systems.
Featuring a roller centre push lever actuator with plastic roller, polymer thermoplastic housing and EN 50047 compliant dimensions, the KBC1L11 delivers smooth mechanical operation and reliable position sensing in demanding industrial environments. The roller lever design allows consistent contact with moving machine components while supporting long-term operational reliability.
The KBC1L11 limit switch includes 1NO + 1NC slow action contacts, an M20 bottom cable entry and an IP65 protection rating, making it suitable for reliable integration into industrial control circuits, automation equipment and OEM machinery applications.
Industrial limit switches such as the Lovato Electric KBC1L11 provide accurate mechanical feedback by detecting the position and movement of machine components. They are commonly used to monitor travel limits, control machine sequences and improve reliability in automated production equipment.
The KBC1L11 combines roller lever actuation, compact dimensions and dependable switching technology, making it suitable for integration into machinery, electrical control panels and industrial automation systems where accurate mechanical sensing is required.
| Weight [g] | 73 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975113790 |
| Product designation | Roller centre push lever |
| Product type designation | KBC |
| Housing | Polymer thermoplastic |
| Roller | Plastic |
| Type of contact | 1NO+1NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The KBC1L11 is an industrial limit switch used for detecting the position and movement of machine components in automation and control applications.
The KBC1L11 features a roller centre push lever actuator with a plastic roller for smooth mechanical operation.
The Lovato KBC1L11 provides 1 normally open and 1 normally closed slow action contacts for flexible industrial control applications.
The KBC1L11 uses an M20 bottom cable entry for straightforward electrical installation.
The KBC1L11 is typically installed on industrial machinery, automation equipment and electrical control systems requiring reliable position detection.
Lovato Electric K series limit switches provide reliable mechanical switching, accurate position detection and durable performance for modern industrial automation systems.
