Lovato Electric KBC2S11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£40.01

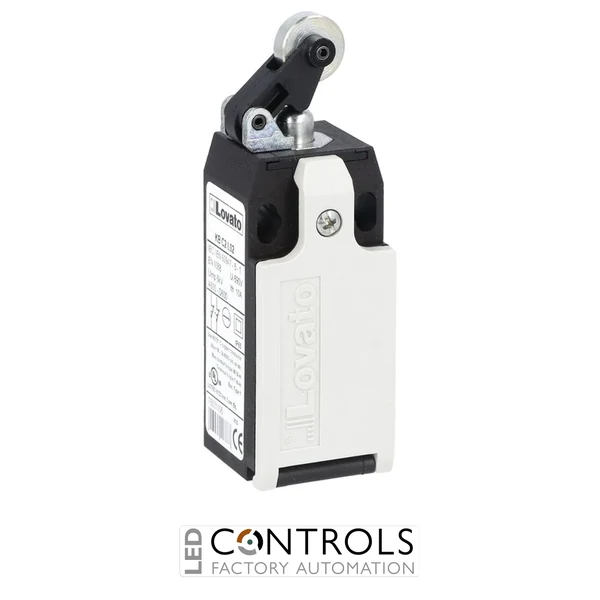

The Lovato KBC2S11 is a K Series industrial limit switch featuring a roller centre push lever actuator with a durable metal roller, polymer thermoplastic housing and 1NO+1NC snap-action contacts. Designed for reliable position detection and machine control applications, this compact limit switch provides dependable mechanical switching performance for industrial automation environments.
The Lovato KBC2S11 limit switch is engineered for applications requiring accurate mechanical position sensing, fast installation and reliable operation. Its EN 50047 compliant dimensions, M20 bottom cable entry and robust construction make it suitable for a wide range of industrial control and automation systems.
Featuring a metal roller centre push lever actuator and snap-action contacts, the KBC2S11 delivers consistent switching operation while maintaining compatibility with professional electrical control assemblies.
Lovato Electric limit switches are designed for dependable industrial operation, offering straightforward installation, modular construction and reliable switching performance. The KBC2S11 combines a robust roller actuator with proven snap-action contact technology for accurate and repeatable machine position detection.
| Weight [g] | 80 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975113936 |
| Product designation | Roller centre push lever |
| Product type designation | KBC |
| Housing | Polymer thermoplastic |
| Roller | Metal |
| Type of contact | 1NO+1NC Snap action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBC2S11 is used for detecting mechanical movement and position changes in industrial automation, machinery and control systems.
The KBC2S11 features 1 normally open (NO) and 1 normally closed (NC) snap-action contact arrangement.
Yes. The actuator uses a metal roller centre push lever design for reliable mechanical operation.
The Lovato KBC2S11 uses an M20 cable entry located on the bottom of the housing.
