Lovato Electric KBD1A11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£36.34

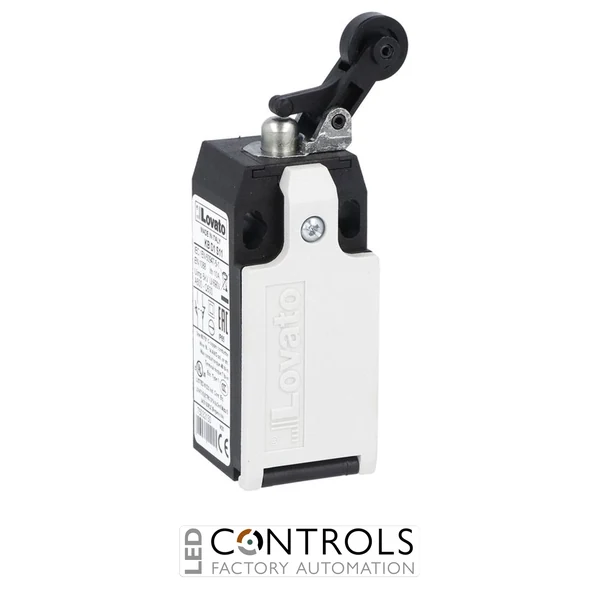

The Lovato KBD1A11 is a K Series industrial limit switch featuring a roller side push lever actuator, polymer thermoplastic housing and 1NO+1NC slow-action make-before-break contacts. Designed for reliable position detection and machine automation applications, this compact limit switch provides accurate mechanical switching performance for industrial control systems.
The Lovato KBD1A11 limit switch is engineered for industrial environments requiring dependable position sensing, easy installation and long-term operational reliability. It features EN 50047 compliant dimensions, a bottom M20 cable entry and a plastic roller side push lever actuator for consistent mechanical operation.
Part of the Lovato K Series range, the KBD1A11 combines modular construction, straightforward wiring and robust thermoplastic housing to provide a versatile solution for automation equipment, machinery and electrical control applications.
Lovato Electric K Series limit switches are designed to provide quick installation, simple wiring, modularity and reliable operation in industrial environments. The KBD1A11 delivers dependable switching through its robust thermoplastic construction, adjustable operating head design and proven slow-action contact technology.
| Weight [g] | 74 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975113943 |
| Product designation | Roller side push lever |
| Product type designation | KBD |
| Housing | Polymer thermoplastic |
| Roller | Plastic |
| Type of contact | 1NO+1NC Slow action make before break |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBD1A11 is used for detecting mechanical movement and position changes in industrial machinery, automation systems and control equipment.
The KBD1A11 features a roller side push lever actuator with a plastic roller.
The KBD1A11 includes 1NO + 1NC slow-action make-before-break contacts.
The Lovato KBD1A11 uses an M20 cable entry located at the bottom of the housing.
