Lovato Electric KBD1L02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£38.46

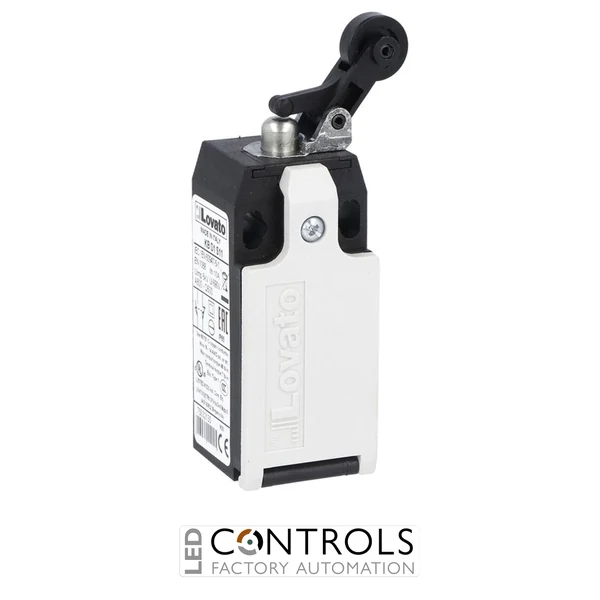

The Lovato KBD1L02 is a K Series industrial limit switch featuring a roller side push lever actuator, polymer thermoplastic housing and 2NC slow-action contacts. Designed for accurate mechanical position detection in industrial automation and machinery applications, this compact limit switch provides reliable switching performance and durable operation in demanding environments.
The Lovato KBD1L02 limit switch is engineered for industrial control applications requiring dependable position sensing and repeatable mechanical operation. It features EN 50047 compliant dimensions, a bottom M20 cable entry and a roller side push lever mechanism for efficient machine monitoring.
Part of the Lovato K Series range, the KBD1L02 combines a robust thermoplastic body with slow-action 2NC contacts, making it suitable for automation equipment, machinery, and electrical control installations where reliable switching is required.
Lovato Electric K Series limit switches are designed to provide dependable operation, straightforward installation and reliable switching performance for industrial applications. The KBD1L02 offers a compact design with a robust housing, roller lever actuator and slow-action contacts for accurate mechanical control.
| Weight [g] | 74 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975113950 |
| Product designation | Roller side push lever |
| Product type designation | KBD |
| Housing | Polymer thermoplastic |
| Roller | Metal |
| Type of contact | 1NO+1NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBD1L02 is used for detecting mechanical movement and position changes in industrial machinery, automation systems and control equipment.
The KBD1L02 features a roller side push lever actuator with a plastic roller.
The KBD1L02 includes two normally closed (2NC) slow-action contacts.
The Lovato KBD1L02 uses an M20 cable entry located at the bottom of the housing.
