Lovato Electric KBD1S11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£38.46

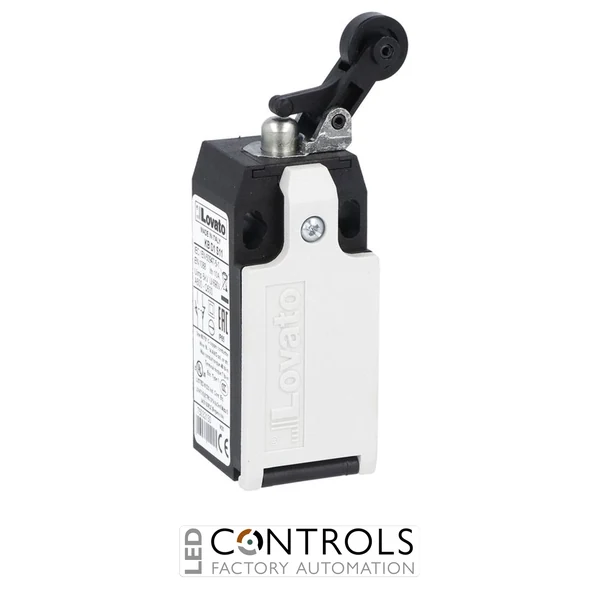

The Lovato KBD1S11 is a K Series industrial limit switch featuring a roller side push lever actuator with a plastic roller, polymer thermoplastic housing and 1NO+1NC snap-action contacts. Designed for reliable mechanical position detection and machine control applications, this compact limit switch delivers fast and repeatable switching performance for industrial automation systems.
The Lovato KBD1S11 limit switch is engineered for industrial environments requiring dependable position sensing, durable construction and accurate switching operation. It features EN 50047 compliant dimensions, a bottom M20 cable entry and a roller side push lever actuator fitted with a plastic roller.
Part of the Lovato K Series range, the KBD1S11 combines a polymer thermoplastic body, IP65 protection and snap-action 1NO+1NC contacts to provide a reliable solution for machinery, automation equipment and electrical control applications.
Lovato Electric K Series limit switches are designed for reliable industrial operation, offering durable construction, accurate mechanical sensing and simple installation. The KBD1S11 provides dependable switching through its robust thermoplastic housing, roller lever actuator and snap-action contact technology.
| Weight [g] | 73 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975114025 |
| Product designation | Roller side push lever |
| Product type designation | KBD |
| Housing | Polymer thermoplastic |
| Roller | Plastic |
| Type of contact | 1NA + 1NC snap action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBD1S11 is used for detecting mechanical movement and position changes in industrial machinery, automation systems and control equipment.
The KBD1S11 features a roller side push lever actuator fitted with a plastic roller.
The Lovato KBD1S11 includes one normally open (NO) and one normally closed (NC) snap-action contact.
The Lovato KBD1S11 uses an M20 cable entry located at the bottom of the housing.
