Lovato Electric KBE1A11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£38.17

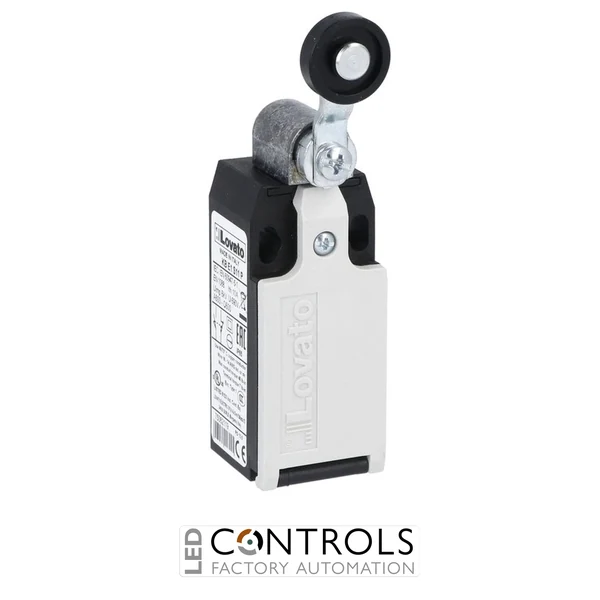

The Lovato KBE1A11 is a K Series industrial limit switch featuring a roller lever plunger actuator with a plastic roller, polymer thermoplastic housing and 1NO+1NC slow-action make-before-break contacts. Designed for accurate mechanical position detection and reliable machine control, this compact limit switch provides dependable switching performance for industrial automation applications.
The Lovato KBE1A11 limit switch is engineered for industrial environments requiring precise position sensing, robust construction and repeatable switching operation. It features EN 50047 compliant dimensions, a bottom M20 cable entry and a roller lever plunger actuator fitted with a plastic roller.
Part of the Lovato K Series range, the KBE1A11 combines a durable polymer thermoplastic enclosure, IP65 protection and slow-action contacts to provide a reliable solution for machinery, automation equipment and electrical control systems.
Lovato Electric K Series limit switches are designed for reliable industrial operation, offering durable construction, accurate mechanical sensing and simple installation. The KBE1A11 combines a roller plunger actuator with a robust thermoplastic enclosure and slow-action contact technology for dependable machine control.
| Weight [g] | 100 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 133X044X032 |
| Volume [cm³] | 187.264 |
| Bar code [EAN13] | 8013975114124 |
| Product designation | Roller lever plunger |
| Product type designation | KBE |
| Housing | Polymer thermoplastic |
| Roller | Plastic |
| Type of contact | 1NO+1NC Slow action make before break |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBE1A11 is used for detecting mechanical movement and position changes in industrial machinery, automation systems and control equipment.
The KBE1A11 features a roller lever plunger actuator fitted with a plastic roller.
The Lovato KBE1A11 includes one normally open (NO) and one normally closed (NC) slow-action make-before-break contact arrangement.
The Lovato KBE1A11 uses an M20 cable entry located at the bottom of the housing.
