Lovato Electric KBE1D02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£57.91

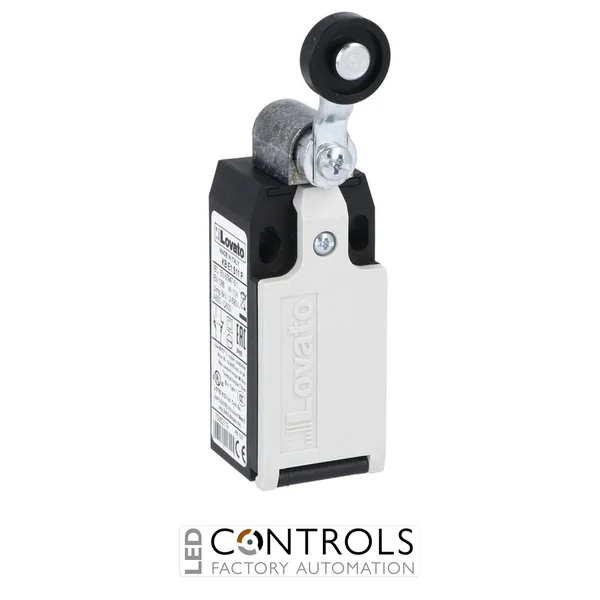

The Lovato KBE1D02 is a K Series industrial limit switch designed for reliable position detection and machine control applications. Featuring a roller lever plunger actuator, durable polymer thermoplastic housing, and two independent normally closed contacts, this compact switch provides dependable operation in industrial automation environments.
Designed according to EN 50047 dimensions, the Lovato KBE1D02 includes a plastic roller actuator, M20 bottom cable entry, and IP65-rated housing protection, making it suitable for machinery monitoring, automation systems, and industrial control installations.
The Lovato KBE1D02 combines robust mechanical construction with accurate switching performance for demanding industrial environments. Its roller lever mechanism allows flexible mechanical activation while the independent NC contacts provide reliable signalling for control and monitoring circuits.
| Weight [g] | 100 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 133X044X032 |
| Volume [cm³] | 187.264 |
| Bar code [EAN13] | 8013975154854 |
| Product designation | Roller lever plunger |
| Product type designation | KBE |
| Housing | Polymer thermoplastic |
| Roller | Plastic |
| Type of contact | 2NC Indipendent |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBE1D02 uses a roller lever plunger actuator with a plastic roller designed for mechanical position detection.
The KBE1D02 features two independent normally closed (2NC) contacts.
The housing of the Lovato KBE1D02 provides IP65 protection, suitable for many industrial environments.
It is commonly used in industrial automation, machinery control, conveyor monitoring, and equipment position detection applications.
