Lovato Electric KBE1L03 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£52.94

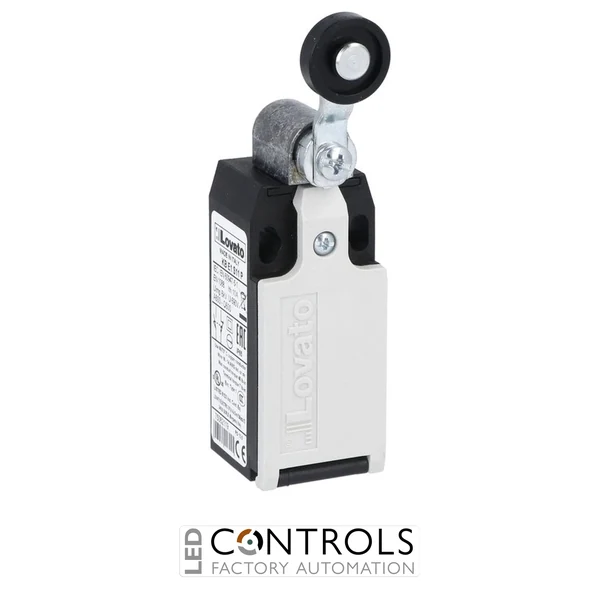

The Lovato KBE1L03 is a K Series industrial limit switch designed for reliable mechanical position sensing and machine control applications. Featuring a plastic roller lever plunger actuator, polymer thermoplastic body and three normally closed slow-action contacts, this compact switch provides dependable switching performance in industrial automation environments.
Designed according to EN 50047 dimensions, the Lovato KBE1L03 includes a bottom M20 cable entry, plastic roller actuator and IP65 protection, making it suitable for machinery monitoring, conveyor systems, automation equipment and industrial control installations.
The Lovato KBE1L03 provides a reliable and durable solution for industrial position detection. Its roller lever mechanism allows smooth mechanical activation, while the 3NC slow-action contacts provide dependable switching for control and monitoring circuits. The robust thermoplastic housing and IP65 protection make it suitable for demanding industrial environments.
| Weight [g] | 104 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 133X044X032 |
| Volume [cm³] | 187.264 |
| Bar code [EAN13] | 8013975114148 |
| Product designation | Roller lever plunger |
| Product type designation | KBE |
| Housing | Polymer thermoplastic |
| Roller | Plastic |
| Type of contact | 3NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBE1L03 uses a plastic roller lever plunger actuator designed for mechanical position detection applications.
The KBE1L03 features three normally closed slow-action contacts (3NC).
The Lovato KBE1L03 uses an M20 bottom cable entry connection.
The Lovato KBE1L03 has an IP65-rated housing suitable for many industrial automation applications.
