Lovato Electric KBE2L20 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£43.22

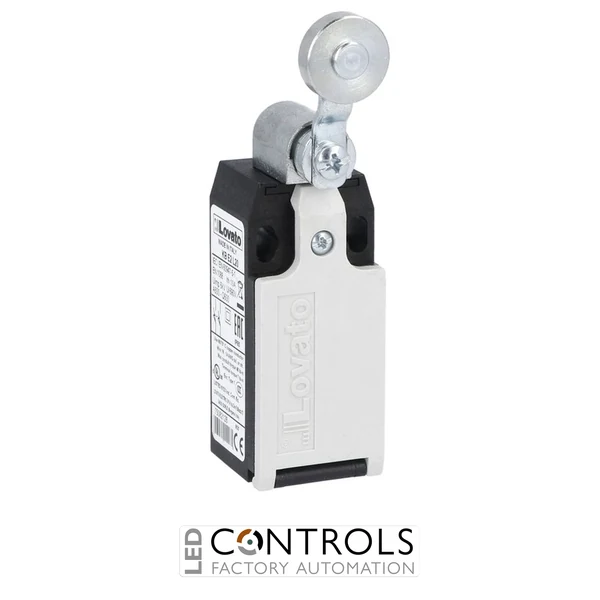

The Lovato KBE2L20 is a K Series industrial limit switch designed for reliable mechanical position detection and machine control applications. Featuring a durable metal roller lever plunger actuator, polymer thermoplastic housing and two normally open slow-action contacts, this switch provides dependable switching performance for industrial automation systems.
Designed according to EN 50047 dimensions, the Lovato KBE2L20 includes a bottom M20 cable entry, metal roller actuator and IP65-rated protection. It is suitable for machinery monitoring, conveyor systems, automation equipment and industrial control installations requiring accurate and repeatable position sensing.
The Lovato KBE2L20 combines a robust metal roller actuator with reliable slow-action switching technology. The 2NO contact arrangement provides dependable normally open signalling for automation, control and monitoring applications, while the durable thermoplastic housing and IP65 protection make it suitable for demanding industrial environments.
| Weight [g] | 106 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 133X044X032 |
| Volume [cm³] | 187.264 |
| Bar code [EAN13] | 8013975114261 |
| Product designation | Roller lever plunger |
| Product type designation | KBE |
| Housing | Polymer thermoplastic |
| Roller | Metal |
| Type of contact | 2NO Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBE2L20 uses a metal roller lever plunger actuator designed for mechanical position detection applications.
The KBE2L20 features two normally open slow-action contacts (2NO).
The Lovato KBE2L20 uses an M20 bottom cable entry connection.
The Lovato KBE2L20 has an IP65-rated housing suitable for industrial automation environments.
