Lovato Electric KBE3L03 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£60.28

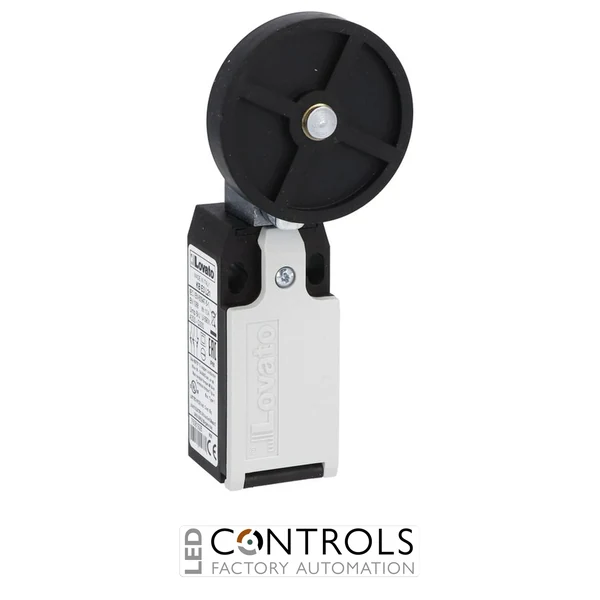

The LOVATO KBE3L03 is a K Series industrial limit switch featuring a roller lever plunger actuator, rubber roller, and three normally closed (3NC) slow-action contacts. Designed for dependable mechanical position detection, this compact switch is suitable for industrial automation systems, machinery, conveyors, and control applications requiring accurate end-of-travel monitoring.
Manufactured with a durable polymer thermoplastic housing and EN 50047 compliant dimensions, the LOVATO KBE3L03 provides reliable switching performance with an IP65 protection rating. The unit includes an M20 bottom cable entry and is engineered for demanding industrial environments where robust mechanical sensing is required.
The LOVATO KBE3L03 limit switch is ideal for industrial automation equipment, machine tools, packaging machinery, conveyor systems, production lines, and applications requiring reliable mechanical position feedback and safety monitoring.
| Weight [g] | 125 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 144X050X070 |
| Volume [cm³] | 504 |
| Bar code [EAN13] | 8013975114322 |
| Product designation | Roller lever plunger |
| Product type designation | KBE |
| Housing | Polymer thermoplastic |
| Roller | Rubber |
| Type of contact | 3NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The LOVATO KBE3L03 uses a roller lever plunger actuator fitted with a rubber roller for mechanical position sensing.
The KBE3L03 features three normally closed (3NC) slow-action contacts.
The LOVATO KBE3L03 has an IP65 protection rating, providing protection against dust and water jets suitable for industrial environments.
