Lovato Electric KBF2L03 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£57.75

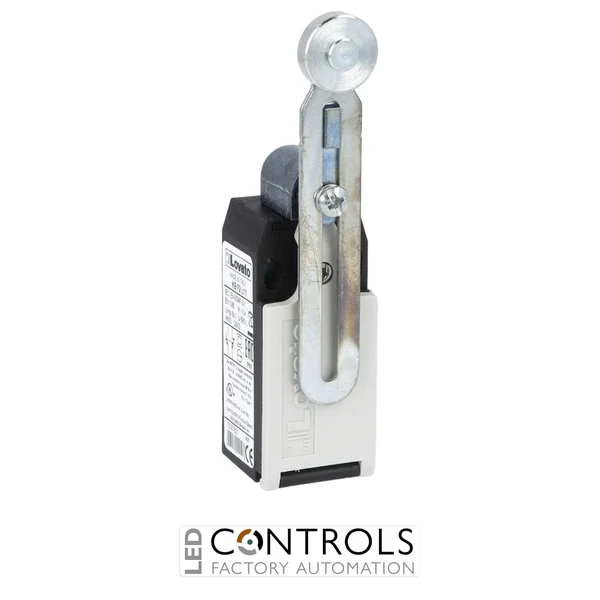

The Lovato KBF2L03 is a K Series industrial limit switch designed for reliable position detection and mechanical control applications. Featuring an adjustable metal roller lever actuator, polymer thermoplastic housing, and three normally closed slow-action contacts, this limit switch provides dependable switching performance in industrial automation systems.
Designed to meet EN 50047 dimensional standards, the Lovato KBF2L03 includes a bottom M20 cable entry, IP65 protection, and robust construction suitable for demanding industrial environments. It is commonly used in machinery, control panels, conveyors, and automated equipment requiring accurate mechanical limit sensing.
The Lovato KBF2L03 limit switch is ideal for applications including:
The Lovato KBF2L03 combines reliable mechanical operation with a durable industrial design. Its adjustable roller lever allows flexible installation, while the slow-action 3NC contact arrangement provides dependable switching for industrial control circuits. The IP65 enclosure rating helps protect against dust and water ingress in suitable operating environments.
| Weight [g] | 130 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 133X044X032 |
| Volume [cm³] | 187.264 |
| Bar code [EAN13] | 8013975114506 |
| Product designation | Adjustable roller lever |
| Product type designation | KBF |
| Housing | Polymer thermoplastic |
| Roller | Metal |
| Type of contact | 3NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBF2L03 uses an adjustable metal roller lever actuator designed for mechanical position sensing applications.
The KBF2L03 features three normally closed (3NC) slow-action contacts.
The switch uses an M20 bottom cable entry connection.
Yes. The KBF2L03 is designed for industrial automation, machinery, and control applications requiring reliable mechanical limit detection.
