Lovato Electric KBF2L20 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£45.10

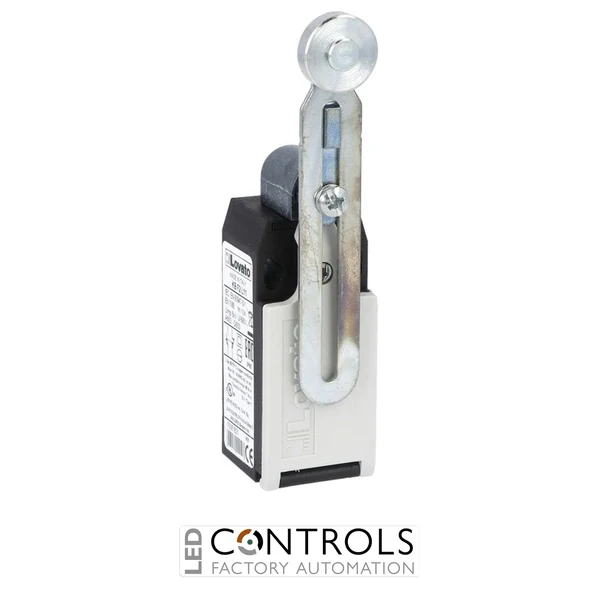

The Lovato KBF2L20 is a K Series industrial limit switch designed for accurate mechanical position detection and reliable control applications. Featuring an adjustable metal roller lever actuator, polymer thermoplastic housing, and 2NO slow-action contacts, this limit switch provides dependable switching performance for industrial automation systems.
Built to EN 50047 dimensional standards, the Lovato KBF2L20 features a bottom M20 cable entry, IP65 protected housing, and durable construction suitable for machinery, conveyors, and automated equipment requiring dependable mechanical limit sensing.
The Lovato KBF2L20 limit switch is suitable for a wide range of industrial applications including:
The Lovato KBF2L20 combines reliable mechanical operation with a robust industrial design. Its adjustable metal roller lever provides flexible installation, while the 2NO slow-action contact configuration delivers dependable switching for industrial control circuits. The IP65-rated housing helps protect the switch in demanding industrial environments.
| Weight [g] | 120 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 133X044X032 |
| Volume [cm³] | 187.264 |
| Bar code [EAN13] | 8013975114537 |
| Product designation | Adjustable roller lever |
| Product type designation | KBF |
| Housing | Polymer thermoplastic |
| Roller | Metal |
| Type of contact | 2NO Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBF2L20 uses an adjustable metal roller lever actuator designed for mechanical position sensing applications.
The Lovato KBF2L20 features two normally open (2NO) slow-action contacts.
The Lovato KBF2L20 uses an M20 bottom cable entry connection.
Yes. The KBF2L20 is designed for industrial automation, machinery, and control applications requiring reliable mechanical limit detection.
