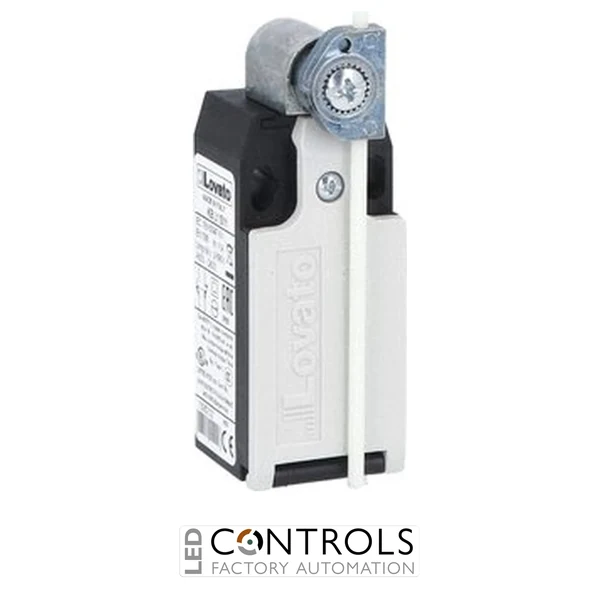

Lovato Electric KBL1D02 is a K series industrial limit switch with an adjustable rod lever, polymer thermoplastic housing and 2NC independent positive-opening contacts for reliable machinery position detection.
£57.56
The Lovato Electric KBL1D02 is a robust K series industrial limit switch with adjustable rod lever designed for reliable position detection in machinery and automation systems. Its polymer thermoplastic housing and aluminium-zinc alloy adjustable rod provide a durable electromechanical switching solution for applications requiring flexible mechanical actuation.
The KBL1D02 incorporates 2 normally closed (2NC) independent contacts with slow-action overlapping switching. The contacts feature direct positive opening action, while the switch has a conventional thermal current rating of 10 A, an A600 Q600 IEC/EN 60947-5-1 designation, a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV.
Designed with dimensions according to EN 50047, the KBL1D02 features a bottom M20 cable entry and self-releasing screw terminals for practical industrial installation. Its IP65 housing protection and adjustable rod lever make it suitable for position and travel detection across industrial machinery, conveyors and automated production equipment.
Industrial limit switches provide electromechanical position detection by changing contact state when their actuator is physically operated by a moving machine component. This allows control systems to detect travel limits, component positions and mechanical movements within automated machinery and production equipment.
The Lovato Electric KBL1D02 combines an adjustable rod lever with two independent normally closed contacts and positive opening action. Its adjustable actuator provides flexibility when matching the switch to machine movement, while the thermoplastic housing and IP65 protection support dependable operation in industrial automation applications.
| HS Code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | K |
| Model | KBL1D02 |
| Product type | Limit switch |
| Product designation | Adjustable rod lever |
| Product type designation | KBL |
| Housing material | Polymer thermoplastic |
| Rod material | Aluminium-zinc alloy |
| Contact configuration | 2NC independent |
| Contact operation | Slow action with overlapping |
| Positive opening | Yes |
| Thermal current Ith | 10 A |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Insulation class | II |
| Short-circuit protection | 10 A gG / SC quick fuse |
| Resistance per pole | <10 mΩ average |
| Operating head fixing | Locking bayonet insert |
| Conductor section | 1.5–2.5 mm² |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10,000,000 cycles |
| Mechanical operation | 3600 cycles/h |
| Operating temperature | -25 to +70 °C |
| Storage temperature | -40 to +70 °C |
| Terminal protection | IP20 |
| Housing protection | IP65 |
| Pollution degree | 3 |
| Dimensions (H × W × D) | 263 × 30 × 30 mm |
| Weight | 112 g |
| EAN | 8013975154885 |
The KBL1D02 is an industrial limit switch with adjustable rod lever designed for mechanical position and travel detection in machinery and automation systems.
The Lovato Electric KBL1D02 has 2 normally closed (2NC) independent contacts with slow-action overlapping switching.
Yes. The KBL1D02 provides direct positive opening action in accordance with IEC/EN 60947-5-1.
The switch has a conventional thermal current rating of 10 A, a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV.
The KBL1D02 provides IP65 housing protection and IP20 protection at the terminals.
Lovato Electric K series limit switches provide dependable electromechanical position detection for industrial machinery and automation systems, with robust actuator designs and contact configurations suited to professional machine-control applications.
