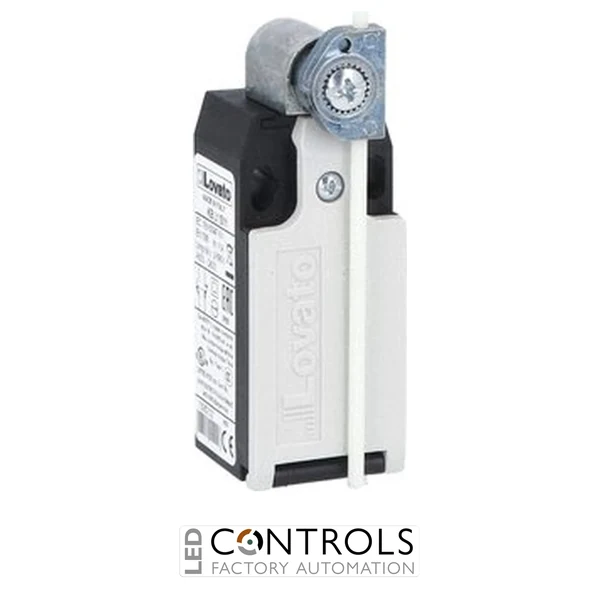

Lovato Electric KBL1L02 is a K series industrial limit switch with an adjustable rod lever, polymer thermoplastic housing and 2NC slow-action positive-opening contacts for reliable machinery position detection.
£44.27
The Lovato Electric KBL1L02 is a robust K series industrial limit switch with adjustable rod lever designed for reliable position detection in machinery and automation systems. Its polymer thermoplastic housing and aluminium-zinc alloy adjustable rod provide a durable electromechanical switching solution for applications requiring flexible mechanical actuation.
The KBL1L02 incorporates 2 normally closed (2NC) slow-action contacts and has a conventional thermal current rating of 10 A. Its electrical characteristics include an A600 Q600 IEC/EN 60947-5-1 designation, a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV.
Designed with dimensions according to EN 50047, the KBL1L02 features a bottom M20 cable entry and self-releasing screw terminals for practical industrial installation. Its IP65 body housing protection and adjustable rod lever make it suitable for position and travel detection across industrial machinery, conveyors and automated production equipment.
Industrial limit switches provide electromechanical position detection by changing contact state when their actuator is physically operated by a moving machine component. This allows control systems to detect travel limits, component positions and mechanical movements within automated machinery and production equipment.
The Lovato Electric KBL1L02 combines an adjustable rod lever with two normally closed slow-action contacts and positive opening action. Its adjustable actuator provides flexibility when matching the switch to machine movement, while its thermoplastic construction, industrial electrical ratings and IP65 body housing protection support dependable operation in professional automation applications.
| HS Code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | K |
| Model | KBL1L02 |
| Product type | Limit switch |
| Product designation | Adjustable rod lever |
| Product type designation | KBL |
| Housing material | Polymer thermoplastic |
| Rod material | Aluminium-zinc alloy |
| Contact configuration | 2NC |
| Contact operation | Slow action |
| Positive opening | Yes |
| Thermal current Ith | 10 A |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Insulation class | II |
| Short-circuit protection | 10 A gG / SC quick fuse |
| Resistance per pole | <10 mΩ average |
| Operating head fixing | Locking bayonet insert |
| Conductor section | 1.5–2.5 mm² |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10,000,000 cycles |
| Mechanical operation | 3600 cycles/h |
| Operating temperature | -25 to +70 °C |
| Storage temperature | -40 to +70 °C |
| Terminal protection | IP20 |
| Body housing protection | IP65 |
| Pollution degree | 3 |
| Dimensions (H × W × D) | 263 × 30 × 30 mm |
| Weight | 108 g |
| EAN | 8013975114858 |
The KBL1L02 is an industrial limit switch with adjustable rod lever designed for mechanical position and travel detection in machinery and automation systems.
The Lovato Electric KBL1L02 has 2 normally closed (2NC) slow-action contacts.
Yes. The KBL1L02 provides positive opening action for its normally closed contacts.
The switch has a conventional thermal current rating of 10 A, a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV.
The KBL1L02 provides IP65 protection at the body housing and IP20 protection at the terminals.
Lovato Electric K series limit switches provide dependable electromechanical position detection for industrial machinery and automation systems, with robust actuator designs and contact configurations suited to professional machine-control applications.
