Lovato Electric KMC2L02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£50.78

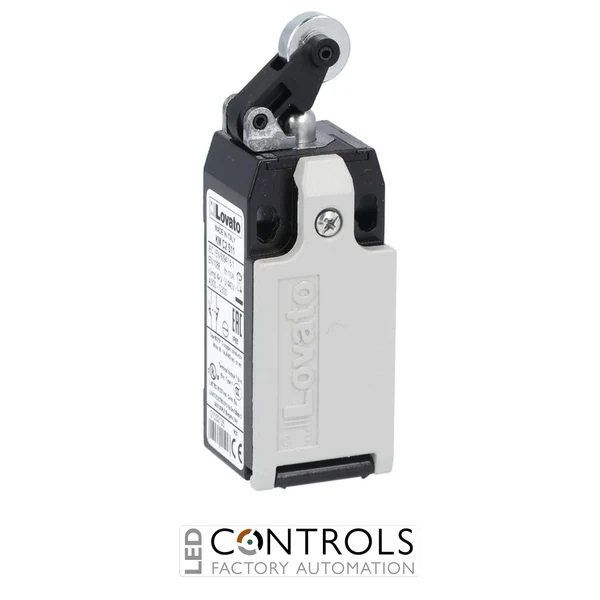

The Lovato KMC2L02 is a robust industrial limit switch from the Lovato Electric K Series, designed for reliable position detection and machine control applications. Featuring a metal roller centre push lever actuator, aluminium-zinc alloy housing, and two normally closed slow-action contacts, this limit switch provides dependable operation in demanding industrial environments.
The KMC2L02 is manufactured to EN 50047 dimensional standards and includes a bottom M20 cable entry for convenient installation. Its durable metal construction, IP65 protection rating, and wide operating temperature range make it suitable for automation equipment, machinery safety systems, and industrial control applications.
The Lovato KMC2L02 combines a rugged metal construction with reliable switching performance, making it an excellent choice for industrial environments where accurate position sensing and long service life are required. Its slow-action 2NC contact configuration ensures dependable switching for automation and control circuits.
| Weight [g] | 157 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975115879 |
| Product designation | Roller centre push lever |
| Product type designation | KMC |
| Housing | Aluminium-zinc alloy |
| Roller | Metal |
| Type of contact | 2NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A300 Q300 |
| Rated insulation voltage Ui [V] | 440 |
| Rated impulse withstand voltage Uimp | 4 |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KMC2L02 is a K Series industrial limit switch with a metal roller centre push lever actuator and 2NC slow-action contacts.
The Lovato KMC2L02 operates in temperatures from -25°C to +70°C.
Yes. The KMC2L02 features an IP65 rated housing suitable for industrial environments.
The KMC2L02 uses an M20 bottom cable entry connection.
