Lovato Electric KMC2S02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£60.58

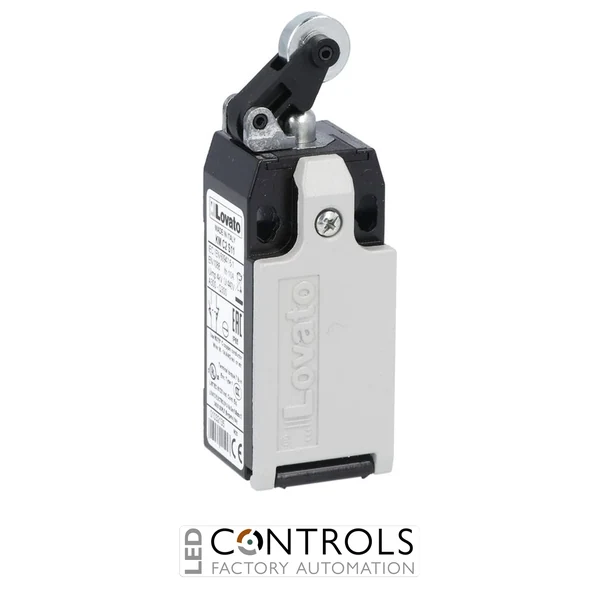

The Lovato KMC2S02 is a rugged industrial limit switch from the Lovato Electric K Series, designed for reliable mechanical position detection and machine control applications. Featuring a metal roller centre push lever actuator, aluminium-zinc alloy housing, and 2NC snap-action contacts, the KMC2S02 provides fast and dependable switching performance in demanding industrial environments.
Designed to EN 50047 dimensional standards, the Lovato KMC2S02 combines a durable metal body with IP65 housing protection, M20 bottom cable entry, and long mechanical life. It is suitable for automation systems, manufacturing equipment, conveyors, and industrial control applications requiring accurate limit detection.
The Lovato KMC2S02 provides reliable snap-action switching with a strong aluminium-zinc alloy housing, metal roller actuator, and IP65 protection. Its 2NC contact arrangement makes it suitable for safety and control applications where normally closed switching is required.
| Weight [g] | 160 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975115930 |
| Product designation | Roller centre push lever |
| Product type designation | KMC |
| Housing | Aluminium-zinc alloy |
| Roller | Metal |
| Type of contact | 2NC Snap action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A300 Q300 |
| Rated insulation voltage Ui [V] | 440 |
| Rated impulse withstand voltage Uimp | 4 |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KMC2S02 uses a metal roller centre push lever actuator designed for industrial position detection.
The Lovato KMC2S02 features two normally closed (2NC) snap-action contacts.
The KMC2S02 uses an M20 cable entry located at the bottom of the housing.
Yes. The KMC2S02 features an aluminium-zinc alloy housing and IP65 protection for reliable industrial operation.
