Lovato Electric KNF4S02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£74.49

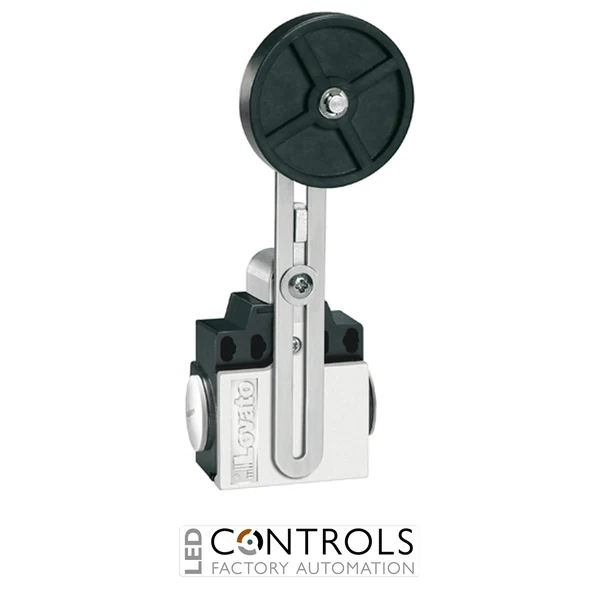

The Lovato Electric KNF4S02 is a K Series industrial limit switch featuring an adjustable rubber roller lever actuator, metal housing and two normally closed (2NC) snap action contacts. Designed for reliable mechanical position detection, this limit switch is ideal for industrial automation, machinery control and equipment monitoring applications.
The KNF4S02 combines a robust aluminium-zinc alloy body with a rubber roller actuator and dual side M20 cable entries. Its EN 50047 compatible dimensions and dependable switching mechanism make it suitable for demanding industrial environments requiring accurate and repeatable operation.
The Lovato KNF4S02 limit switch is suitable for a wide range of industrial applications including conveyor systems, automated machinery, production equipment, machine tools and mechanical position monitoring systems.
The adjustable roller lever design allows flexible installation where mechanical movement needs to be detected accurately, while the metal housing provides durability in industrial operating conditions.
Lovato Electric K Series limit switches are designed for quick installation, reliable switching and long service life. The KNF4S02 provides a dependable solution for OEM machinery builders, maintenance teams and industrial automation engineers requiring a rugged mechanical sensing device.
| Weight [g] | 280 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 150X060X060 |
| Volume [cm³] | 540 |
| Bar code [EAN13] | 8013975128664 |
| Product designation | Adjustable roller lever |
| Product type designation | KNF |
| Housing | Aluminium-zinc alloy |
| Roller | Rubber |
| Type of contact | 2NC Snap action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A300 Q300 |
| Rated insulation voltage Ui [V] | 440 |
| Rated impulse withstand voltage Uimp | 4 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the sides |
| Mechanical life | <10000000 |
| Mechanical operation | 3600 |
| min [°C] | -40 |
| max [°C] | +70 |
| Terminals | IP20 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KNF4S02 uses an adjustable roller lever actuator with a rubber roller for mechanical position sensing.
The KNF4S02 features two normally closed (2NC) snap action contacts.
It is commonly used in industrial automation, machinery control, conveyors and equipment position monitoring applications.
