Lovato Electric KBN2L12 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£87.55

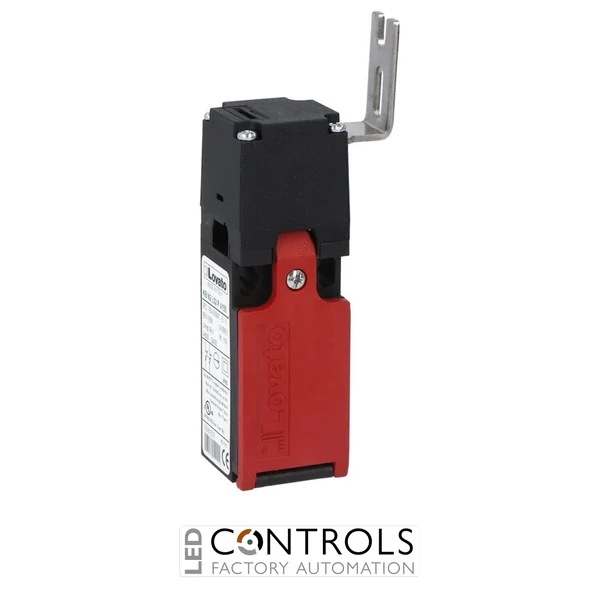

The Lovato Electric KBN2L12 is a professional safety limit switch from the K series, designed for industrial safety applications requiring reliable key-operated switching. Featuring an angled key actuator, polymer thermoplastic housing and a 1NO+2NC slow-action contact configuration, the KBN2L12 provides dependable operation for machinery safety circuits, control panels and industrial automation installations.
Built to EN 50047 dimensional standards, this Lovato safety switch includes a bottom M20 cable entry, forced opening capability and robust mechanical construction suitable for demanding industrial environments. The compact plastic body design allows straightforward installation while maintaining reliable switching performance.
| Manufacturer | Lovato Electric |
|---|---|
| Product Code | KBN2L12 |
| Product Type | Safety Limit Switch |
| Series | KBN |
| Actuator Type | Key operated angled key |
| Contact Configuration | 1NO + 2NC Slow Action |
| Housing Material | Polymer thermoplastic |
| Cable Entry | M20 bottom entry |
| Thermal Current Ith | 10A |
| Rated Insulation Voltage Ui | 690V |
| Rated Impulse Withstand Voltage Uimp | 6kV |
| Mechanical Life | 100,000 cycles |
| Operating Temperature | -25°C to +70°C |
| Protection Rating | IP65 |
| Weight | 96.7g |
| EAN | 8013975115282 |
| Weight [g] | 96 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 140.8 |
| Bar code [EAN13] | 8013975115282 |
| Product designation | Key operated |
| Product type designation | KBN |
| Housing Material | Polymer thermoplastic |
| Key shape | Angled |
| Type of contact | 1NO+2NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Mechanical life | 100000 |
| B10d | 100000 |
| Mechanical operation | 3600 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Pollution degree | 3 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KBN2L12 is a key-operated safety limit switch used for monitoring machine guards, access doors and safety interlock applications in industrial environments.
The KBN2L12 features a 1NO + 2NC slow-action contact arrangement for safety control applications.
Yes. With a durable thermoplastic housing, IP65 protection and a wide operating temperature range, the KBN2L12 is designed for professional industrial installations.
The switch uses a bottom M20 cable entry with self-releasing screw terminals for electrical connection.
