Lovato Electric KCN2L02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£78.75

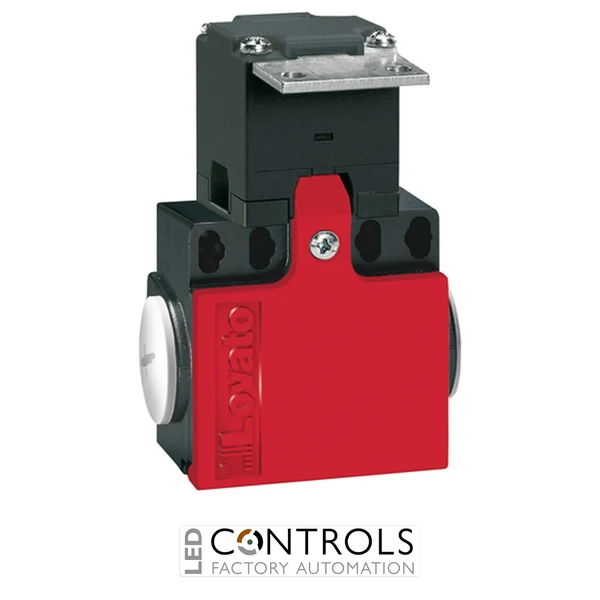

The Lovato KCN2L02 is a K series safety limit switch featuring a key-operated actuator with an angled key design and a durable polymer thermoplastic housing. Manufactured by Lovato Electric, this safety switch is designed for monitoring machine guards, protective doors, and access points in industrial automation and safety control applications.
Equipped with 2NC slow action contacts, the KCN2L02 provides reliable switching performance for safety circuits. The unit features two side M20 cable entries, EN 50047 compatible dimensions, and an IP65 rated enclosure for dependable operation in demanding industrial environments.
| Weight [g] | 107 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 269.1 |
| Bar code [EAN13] | 8013975127780 |
| Product designation | Key operated |
| Product type designation | KCN |
| Housing Material | Polymer thermoplastic |
| Key shape | Angled |
| Type of contact | 2NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Mechanical life | 100000 |
| B10d | 100000 |
| Mechanical operation | 3600 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the sides |
| Pollution degree | 3 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KCN2L02 uses a key-operated actuator with an angled key designed for safety interlocking applications.
The KCN2L02 features two normally closed (2NC) slow action contacts suitable for safety control circuits.
The Lovato KCN2L02 has an IP65 rated enclosure, providing protection against dust and water ingress when correctly installed.
The KCN2L02 is commonly used for monitoring machine guards, safety doors, and industrial automation safety systems.
