Lovato Electric KCP1L02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£85.43

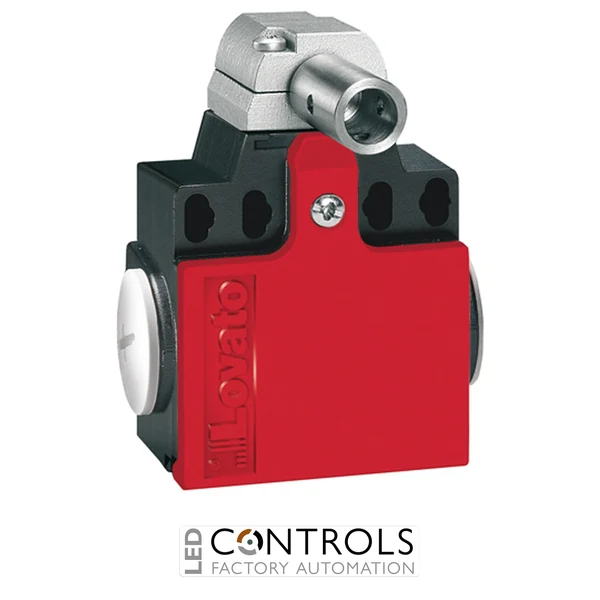

The Lovato KCP1L02 is a K series safety limit switch featuring a hinge-operated actuator with a short cylinder shaft and a durable polymer thermoplastic housing. Manufactured by Lovato Electric, this compact safety switch is designed for monitoring machine guards, hinged doors, covers, and access points in industrial automation and safety control applications.
Equipped with 2NC slow action contacts, the KCP1L02 provides reliable forced-opening switching performance for safety circuits. The unit features two side M20 cable entries, dimensions compatible with EN 50047, and an IP65 rated enclosure for dependable operation in industrial environments.
| Weight [g] | 141 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 269.1 |
| Bar code [EAN13] | 8013975127841 |
| Product designation | Hinge operating |
| Product type designation | KCP |
| Housing Material | Polymer thermoplastic |
| Rod material | Short cylinder hinge |
| Type of contact | 2NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Mechanical life | 100000 |
| B10d | 100000 |
| Mechanical operation | 3600 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the sides |
| Pollution degree | 3 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KCP1L02 uses a hinge-operated actuator with a short cylinder shaft designed for safety monitoring applications.
The KCP1L02 features two normally closed (2NC) slow action contacts suitable for safety control circuits.
The Lovato KCP1L02 has an IP65 rated enclosure, providing protection against dust and water ingress when correctly installed.
The KCP1L02 is commonly used for monitoring hinged machine guards, safety doors, covers, and industrial automation safety systems.
