Lovato Electric KCP3L02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£88.85

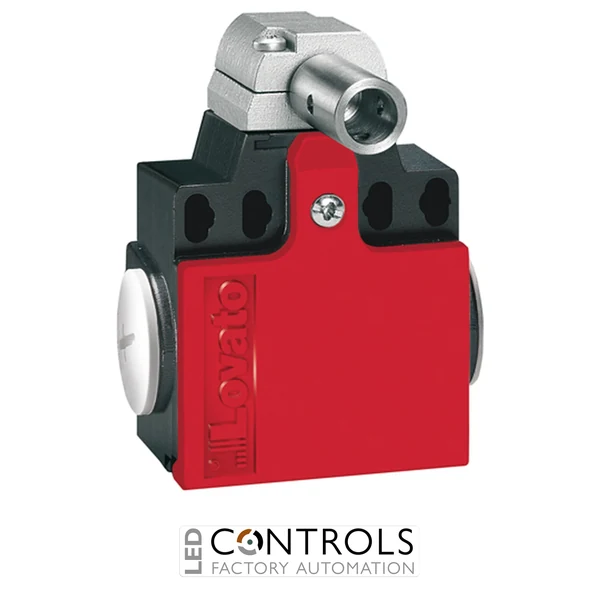

The Lovato Electric KCP3L02 is a high-quality safety limit switch designed for reliable position monitoring and machine safety applications. Featuring a hinged operating mechanism, long solid shaft with reduction, and durable polymer thermoplastic housing, this Lovato component provides dependable switching performance for industrial control and automation systems.
Manufactured by Lovato Electric, the KCP3L02 is suitable for professional panel builders, machine manufacturers, and maintenance engineers requiring a genuine replacement safety switch with robust mechanical performance and reliable electrical operation.
The Lovato KCP3L02 is designed for use in compatible Lovato Electric safety switching systems and industrial automation installations. Always verify electrical and mechanical suitability before installation.
| Weight [g] | 156 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 088X055X120 |
| Volume [cm³] | 580.8 |
| Bar code [EAN13] | 8013975144053 |
| Product designation | Hinge operating |
| Product type designation | KCP |
| Housing Material | Polymer thermoplastic |
| Rod material | Long solid |
| Type of contact | 2NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A600 Q600 |
| Rated insulation voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp | 6 |
| Insulation class | II |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Mechanical life | 100000 |
| B10d | 100000 |
| Mechanical operation | 3600 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the sides |
| Pollution degree | 3 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KCP3L02 is a hinged safety limit switch used for position monitoring and machine safety applications in industrial environments.
Yes. The Lovato KCP3L02 features two normally closed (2NC) slow-action contacts.
The switch is designed to operate between -25°C and +70°C.
Yes. The KCP3L02 is designed for professional industrial automation, control panel, and machine safety applications.
