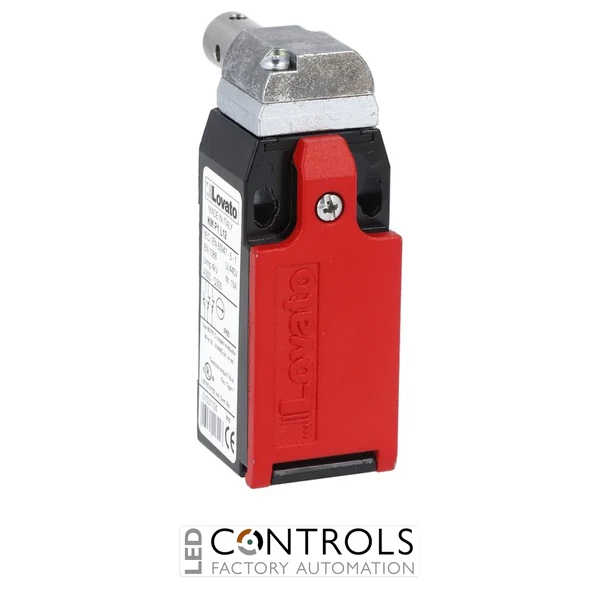

Lovato Electric KMP1L02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£93.30
| Manufacturer | Lovato Electric |
|---|---|
| Product Series | K Series |
| Product Type | Safety limit switch |
| Operating Type | Hinge operating |
| Actuator Type | Short cylinder hinge shaft |
| Contact Configuration | 2NC Slow Action |
| Housing Material | Aluminium-zinc alloy |
| Cable Entry | M20 bottom entry |
| Rated Thermal Current Ith | 10A |
| Rated Insulation Voltage Ui | 440V |
| Rated Impulse Withstand Voltage Uimp | 4kV |
| Protection Rating | IP65 |
| Operating Temperature | -25°C to +70°C |
| Weight | 207g |
| EAN13 | 8013975117217 |
| HS Code | 85365080 |
The Lovato KMP1L02 uses a hinge operating mechanism with a short cylinder shaft actuator.
The Lovato KMP1L02 features 2NC slow-action contacts.
The Lovato KMP1L02 provides IP65 protection for industrial environments.
| Weight [g] | 207 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 269.1 |
| Bar code [EAN13] | 8013975117217 |
| Product designation | Hinge operating |
| Product type designation | KMP |
| Housing Material | Aluminium-zinc alloy |
| Rod material | Short cylinder hinge |
| Type of contact | 2NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A300 Q300 |
| Rated insulation voltage Ui [V] | 440 |
| Rated impulse withstand voltage Uimp | 4 |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Mechanical life | 100000 |
| B10d | 100000 |
| Mechanical operation | 3600 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Pollution degree | 3 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
