Lovato Electric KMP2L02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£97.20

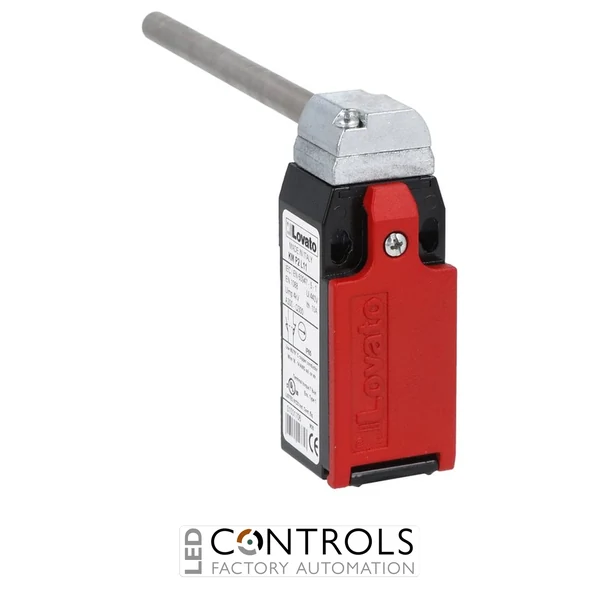

The Lovato Electric KMP2L02 is a robust metal safety limit switch from the Lovato KMP series, designed for industrial machinery safety, automation and position monitoring applications. Featuring a hinge operating mechanism, long solid shaft actuator and 2NC slow action contacts, the KMP2L02 provides dependable switching performance for demanding industrial environments.
Manufactured with a durable aluminium-zinc alloy housing, the Lovato KMP2L02 is designed to EN 50047 dimensions and includes an M20 bottom cable entry. With IP65 protection and forced opening capability, it is suitable for machine guarding, safety circuits and industrial control installations.
| Weight [g] | 254 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 185X041X085 |
| Volume [cm³] | 644.725 |
| Bar code [EAN13] | 8013975143360 |
| Product designation | Hinge operating |
| Product type designation | KMP |
| Housing Material | Aluminium-zinc alloy |
| Rod material | Long solid |
| Type of contact | 2NC Slow action |
| Thermal current Ith | 10 |
| IEC/EN 60947-5-1 designation | A300 Q300 |
| Rated insulation voltage Ui [V] | 440 |
| Rated impulse withstand voltage Uimp | 4 |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Mechanical life | 100000 |
| B10d | 100000 |
| Mechanical operation | 3600 |
| Operating head fixing | Locking bayonet insert |
| min [mm²] | 1.5 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | M20 on the bottom |
| Pollution degree | 3 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
The Lovato KMP2L02 is used as a safety limit switch for monitoring machine positions, protective guards and mechanical movement in industrial automation systems.
The Lovato KMP2L02 features two normally closed (2NC) slow action contacts designed for industrial safety switching applications.
Yes. The KMP2L02 includes forced opening contacts and is designed for safety-related machinery monitoring applications.
The KMP2L02 uses an M20 cable entry located on the bottom of the enclosure.
The Lovato KMP2L02 provides IP65 protection, making it suitable for industrial environments requiring protection from dust and water ingress.
Lovato KMP2L02, Lovato Electric KMP2L02, KMP2L02 safety limit switch, Lovato KMP hinge switch, metal safety switch 2NC, industrial hinge operated limit switch.
