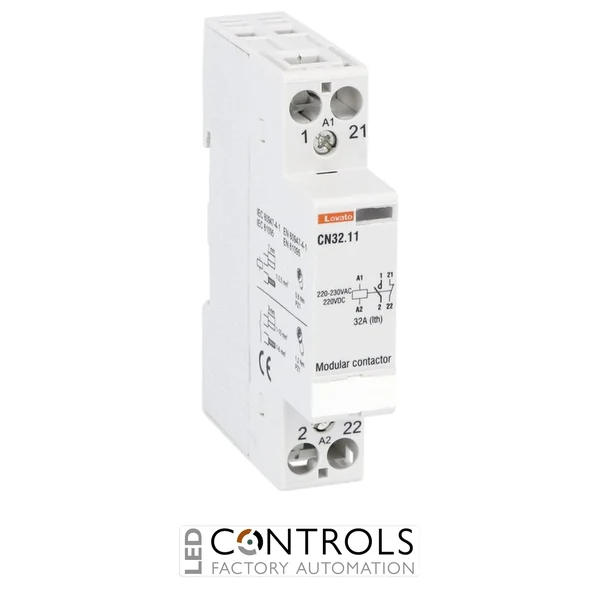

Lovato CN3211220 modular contactor with 32 A AC1 rating, 220-230 VAC/DC coil voltage and 1NO+1NC contact arrangement for electrical switching and control panel applications.
£53.53
The Lovato CN3211220 is a compact and reliable modular contactor designed for switching and controlling electrical loads in residential, commercial, and industrial applications. Featuring a 1-pole configuration, 32A AC1 rated current, and a 220-230VAC coil supply, this contactor provides dependable switching performance for lighting, automation, HVAC, and general electrical control systems.
The Lovato CN3211220 features a 1NO + 1NC contact configuration, a compact 1 DIN module housing, and standard 35mm DIN rail mounting. Its space-saving design makes it ideal for electrical panels where reliable switching and efficient installation are required.
| Current | 32 A |
|---|---|
| Voltage | 230 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | CN Modular Contactors |
| Product type | Modular contactor |
| Contact arrangement | 1NO+1NC |
| Number of poles | 2 |
| Rated supply voltage | 220-230 VAC/DC |
| Operating voltage type | AC/DC |
| Conventional free air thermal current Ith | 32 A |
| Operational current AC1 / AC-7a | 32 A at ≤400 V |
| Operational current AC-3 / AC-7b | 9 A at ≤400 V |
| Rated insulation voltage Ui | 440 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Minimum switching capacity | ≥17 V / ≥50 mA |
| Number of DIN modules | 1 |
| Mounting type | 35 mm DIN rail |
| Connection type | Frame clamp / screw terminals |
| Protection rating | IP20 front |
| Weight | approx. 135 g |
| Package dimensions | 178 × 90 × 72 mm |
| EAN | 8013975218143 |
| Compliance | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, IEC/EN 61095 |
| HS Code | 85365080 |
The Lovato CN3211220 is a modular contactor designed for switching and controlling electrical loads in automation systems, control panels, and electrical distribution installations.
The Lovato CN3211220 uses a 220-230VAC control coil supply.
The CN3211220 features a 1NO + 1NC contact configuration.
The Lovato CN3211220 occupies 1 DIN module on a standard 35mm DIN rail.
