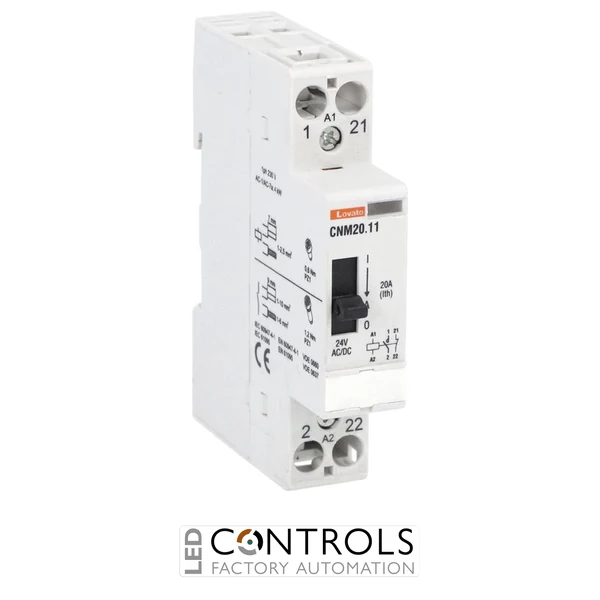

Lovato CNM2011024 modular contactor with manual control, 20 A AC1 rating, 24 VAC/DC coil voltage and 1NO+1NC contact arrangement for electrical switching and control panel applications.
£72.84
The Lovato CNM2011024 is a compact modular contactor with manual control designed for reliable switching and control of electrical loads in residential, commercial, and industrial applications. Featuring a 20A AC1 rated current, 24VAC/DC control supply, and 1 normally open plus 1 normally closed contact configuration (1NO+1NC), this DIN rail mounted contactor provides flexible control and manual override functionality for electrical installations.
Manufactured by Lovato Electric, the CNM2011024 belongs to the CNM modular contactor range and combines automatic electrical control with manual operation capability. Its compact half-module design makes it suitable for applications such as lighting control, building automation, service installations, and electrical distribution systems requiring reliable switching with easy testing and maintenance control.
The Lovato CNM2011024 modular contactor is commonly used for:
The Lovato CNM2011024 provides a compact and versatile solution where both automatic and manual switching control are required. With its 20A AC1 rating, 24VAC/DC coil operation, 1NO+1NC contacts, and space-saving half-module DIN rail design, it is ideal for professional installations requiring dependable switching and convenient manual testing capability.
| Current | 20 A |
|---|---|
| Voltage | 24 V |
| Phase | Three Phase |
| Series | CNM Modular Contactors |
| Product type | Modular contactor with manual control |
| Product designation | Modular contactor |
| Contact arrangement | 1NO+1NC |
| Number of poles | 2 |
| Rated supply voltage | 24 VAC/DC |
| Operating voltage type | AC/DC |
| Manual control | Yes |
| Conventional free air thermal current Ith | 20 A |
| Operational current AC1 / AC-7a | 20 A at up to 400 V |
| Operational current AC-3 / AC-7b | 9 A at up to 400 V |
| Rated insulation voltage Ui | 440 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Minimum switching capacity | 17 V / 50 mA |
| Power dissipation per pole | approx. 1.7 W |
| Number of DIN modules | 0.5 |
| Mounting type | 35 mm DIN rail |
| Connection type | Frame clamp / screw terminals |
| Operating temperature | -15°C to +55°C |
| Weight | approx. 137 g |
| Package dimensions | 178 × 90 × 72 mm |
| EAN | 8013975219669 |
| Certifications | EAC |
| Compliance | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, IEC/EN 61095 |
| HS Code | 85365080 |
The Lovato CNM2011024 operates with a 24VAC/DC control supply voltage.
The CNM2011024 features one normally open contact and one normally closed contact (1NO+1NC).
The Lovato CNM2011024 has a rated AC1 current of 20A.
Yes. The CNM2011024 includes manual control functionality for testing and forcing operation when required.
