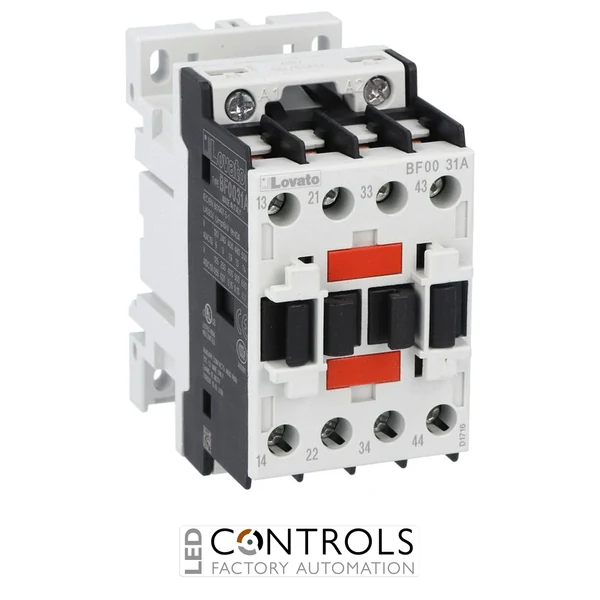

Lovato BF0031A23060 BF series control relay with 230 V AC 60 Hz coil, 3 normally open and 1 normally closed contacts, DIN rail compatibility and screw terminals for industrial automation systems.
£57.59
The Lovato BF0031A23060 is a compact and reliable auxiliary control relay designed for industrial automation, electrical control panels and machine control applications. Part of the trusted Lovato BF00 series, this relay features a 230 V AC coil operating at 60 Hz and a flexible 3NO + 1NC auxiliary contact configuration for dependable switching, signalling and interlocking functions.
Engineered for OEM manufacturers, automation specialists and electrical panel builders, the BF0031A23060 combines robust industrial construction with flexible installation options. Its screw terminal connections and compatibility with 35 mm DIN rail mounting allow straightforward integration into modern industrial control cabinets.
Featuring four poles with 3 normally open (NO) and 1 normally closed (NC) auxiliary contacts, the Lovato BF0031A23060 provides flexible circuit control for automation systems, motor control equipment and industrial machinery. Its compact BF00 design helps optimise panel space while maintaining reliable electrical performance.
The Lovato BF0031A23060 provides dependable auxiliary switching for industrial control circuits, enabling automation systems to manage machine logic, signalling and interlocking functions efficiently. Its 230 V AC 60 Hz coil design makes it suitable for a wide range of industrial applications.
The BF00 series combines compact dimensions, robust construction and flexible mounting options. With its 3NO + 1NC contact arrangement, the BF0031A23060 is an effective solution for electrical panels, industrial machinery and automation systems requiring reliable control switching.
| Voltage | 230 V |
|---|---|
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | BF Series |
| Product type | Control relays with AC and DC control circuit |
| Number of poles | 4 |
| Contact configuration | 3NO + 1NC |
| Coil type | AC coil 60 Hz |
| Rated coil voltage | 230 V AC |
| Supply frequency | 60 Hz |
| Thermal current Ith | 10 A |
| Rated insulation voltage | 690 V |
| Rated impulse withstand voltage | 6 kV |
| Operating current AC15 at 230 V | 3 A |
| Operating current AC15 at 400 V | 1.9 A |
| Operating current DC13 at 24 V | 5.7 A |
| Operating current DC13 at 220 V | 0.55 A |
| Type of mounting | Screw / DIN rail 35 mm |
| Terminal type | Screw terminals |
| Mechanical durability | 20 million operations |
| Mirror contacts | According to IEC/EN 60947-4-1 |
| Protection rating | IP20 when properly wired |
| Operating temperature | -50 to +70 °C |
| Weight | 352 g |
| Dimensions | 90 × 47 × 86 mm |
| EAN | 8013975162743 |
| Certifications | CCC, EAC, cULus |
| Standards | IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-5-1 |
| HS Code | 85365080 |
The Lovato BF0031A23060 is an auxiliary control relay used for switching and controlling electrical circuits in industrial automation systems.
The BF0031A23060 operates with a 230 V AC coil at 60 Hz.
The relay features a 3NO + 1NC auxiliary contact configuration with four poles.
The relay supports screw mounting and DIN rail 35 mm mounting for installation inside electrical control cabinets.
The relay is commonly installed in industrial automation panels, machinery control systems and electrical switchgear applications.
Lovato BF series control relays are trusted by engineers and machine builders worldwide to provide reliable auxiliary switching, efficient panel integration and dependable industrial control performance.
