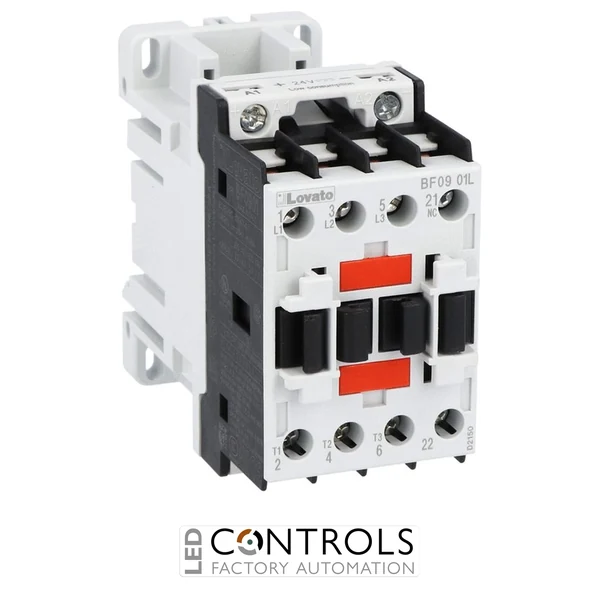

Lovato BF0901L024 BF09 three-pole contactor with 24 V DC low-consumption coil, 9 A AC-3 operating current, 25 A AC-1 thermal current, 1NC auxiliary contact with mirror contact function, screw terminals and DIN rail or screw mounting.
£89.70
The Lovato BF0901L024 is a compact and reliable three-pole IEC contactor designed for switching and controlling motors and electrical loads in industrial automation, machinery and control panel applications. Part of the dependable Lovato BF series contactors, it provides efficient operation, long electrical life and flexible installation for modern industrial systems.
This contactor features a low-consumption 24V DC coil and an integrated 1NC auxiliary contact with mirror contact function, making it suitable for automation systems requiring reduced control power consumption and reliable status monitoring. Its compact construction allows easy integration into electrical cabinets and OEM machinery.
With an IEC AC-3 operating current rating of 9A and a motor switching capability of up to 4.2 kW at 400V AC, the Lovato BF0901L024 is ideal for controlling small three-phase motors, pumps, fans and industrial equipment. The contactor supports both screw mounting and 35mm DIN rail installation for convenient panel assembly.
Industrial contactors such as the Lovato BF0901L024 provide safe and efficient switching between control circuits and higher-power electrical loads. Their electromagnetic design allows automation systems to control motors and equipment while maintaining dependable electrical isolation.
The Lovato BF series is designed for machine builders, panel manufacturers and industrial automation engineers who require compact, efficient and reliable switching solutions. The low-consumption DC coil version is particularly suitable for PLC-controlled applications where energy efficiency is important.
| Power | 4.2 kW |
|---|---|
| Current | 9 A |
| Voltage | 24 V |
| Phase | Three Phase |
| Series | BF09 |
| Product designation | Power contactor |
| Product type | Three-pole contactor |
| Coil type | DC coil, low consumption |
| Rated coil voltage | 24 V DC |
| Number of main poles | 3 |
| Built-in auxiliary contacts | 1NC |
| Auxiliary contact function | Mirror contact function |
| IEC conventional free air thermal current Ith | 25 A at up to 40 °C |
| AC-1 operating current | 25 A at up to 40 °C, 20 A at up to 55 °C, 18 A at up to 70 °C |
| AC-3 operating current | 9 A at up to 440 V and up to 55 °C |
| AC-3 power rating at 230 V | 2.2 kW |
| AC-3 power rating at 400 V | 4.2 kW |
| AC-3 power rating at 415 V | 4.5 kW |
| AC-3 power rating at 440 V | 4.8 kW |
| AC-3 power rating at 500 V | 5.5 kW |
| AC-3 power rating at 690 V | 7.5 kW |
| AC-4 operating current at 400 V | 4.9 A |
| UL/CSA motor rating at 480 V | 5 HP |
| UL/CSA motor rating at 575/600 V | 7.5 HP |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Operational frequency | 25 to 400 Hz |
| Low-consumption DC coil consumption | 2.4 W inrush, 2.4 W holding |
| Terminal type | Screw connection |
| Power terminal protection | IP20 when properly wired |
| Mounting type | 35 mm DIN rail or screw mounting |
| Operating position | Vertical plane, allowable plus or minus 30° |
| Package dimensions | 93 x 48 x 110 mm |
| Package volume | 491.04 cm³ |
| Weight | approx. 502 g |
| Mechanical durability | up to 20,000,000 cycles |
| Electrical life | up to 2,000,000 cycles depending on operating conditions |
| Operating temperature | -50 to +70 °C |
| Storage temperature | -60 to +80 °C |
| Maximum altitude | 3000 m |
| EAN | 8013975168103 |
| Certifications | CCC, EAC, cULus, UL 60335-2-40 LZGH A2L, CSA C22.2 No. 60335-2-40:22 LZGH A2L, UL 60335-2-89 LZGH A2L, CSA C22.2 No. 60335-2-89:21 LZGH A2L |
| Standards | IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1, IEC/EN 60335-2-89 |
| HS Code | 85365080 |
The Lovato BF0901L024 is a three-pole IEC contactor used for controlling motors and electrical loads in industrial automation and machinery applications.
The BF0901L024 uses a 24V DC low-consumption coil designed for industrial control circuits.
The contactor has an IEC AC-3 operating current rating of 9A and a thermal current rating of 25A.
Yes, it includes a built-in 1NC auxiliary contact with mirror contact function.
The contactor can be installed using screw mounting or on a standard 35mm DIN rail inside electrical control panels.
Lovato BF series contactors are widely used by automation engineers and machine builders to deliver reliable motor switching, efficient control and long-lasting performance in industrial electrical systems.
