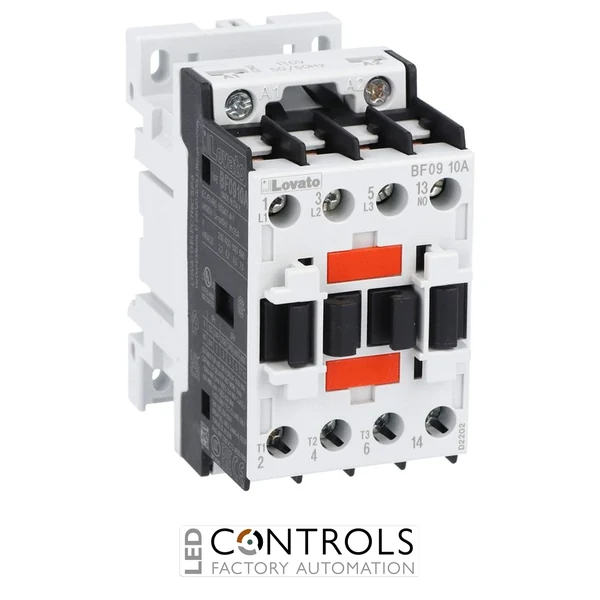

Lovato BF0910A22060 BF09 three-pole contactor with 220 V AC 60 Hz coil, 9 A AC-3 operating current, 25 A AC-1 thermal current, 1NO auxiliary contact, screw terminals and DIN rail or screw mounting.
£50.21
The Lovato BF0910A22060 is a reliable three-pole IEC contactor designed for efficient switching and control of motors and electrical loads in industrial automation, machinery and electrical control systems. Part of the trusted Lovato BF series contactors, it provides dependable switching performance, compact installation and long service life for professional industrial applications.
This contactor features a 220V AC 60Hz coil and an integrated 1NO auxiliary contact, allowing straightforward integration into motor starters, automation circuits and industrial control panels. Its robust construction ensures reliable operation in demanding electrical environments.
With an IEC AC-3 operating current rating of 9A and a motor switching capability of 4.2 kW at 400V AC, the Lovato BF0910A22060 is suitable for controlling small three-phase motors, pumps, fans and industrial machinery. The contactor supports both screw mounting and 35mm DIN rail installation for flexible panel integration.
Industrial contactors such as the Lovato BF0910A22060 provide dependable electromagnetic switching between control circuits and higher-power electrical loads. They allow automation controllers and industrial systems to safely operate motors and machinery while maintaining reliable electrical separation.
The Lovato BF series is designed for OEM manufacturers, machine builders and electrical engineers requiring compact, durable and efficient switching solutions. Its auxiliary contact arrangement and flexible mounting options make it suitable for a wide range of industrial applications.
| Power | 4.2 kW |
|---|---|
| Current | 9 A |
| Voltage | 220 V |
| Phase | Three Phase |
| Series | BF09 |
| Product designation | Power contactor |
| Product type | Three-pole contactor |
| Coil type | AC coil 60 Hz |
| Rated coil voltage | 220 V AC |
| Number of main poles | 3 |
| Built-in auxiliary contacts | 1NO |
| IEC conventional free air thermal current Ith | 25 A at up to 40 °C |
| AC-1 operating current | 25 A at up to 40 °C, 20 A at up to 55 °C, 18 A at up to 70 °C |
| AC-3 operating current | 9 A at up to 440 V and up to 55 °C |
| AC-3 power rating at 230 V | 2.2 kW |
| AC-3 power rating at 400 V | 4.2 kW |
| AC-3 power rating at 415 V | 4.5 kW |
| AC-3 power rating at 440 V | 4.8 kW |
| AC-3 power rating at 500 V | 5.5 kW |
| AC-3 power rating at 690 V | 7.5 kW |
| AC-4 operating current at 400 V | 4.9 A |
| UL/CSA full-load current at 480 V | 7.6 A |
| UL/CSA full-load current at 600 V | 9 A |
| UL/CSA motor rating at 480 V | 5 HP |
| UL/CSA motor rating at 575/600 V | 7.5 HP |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Operational frequency | 25 to 400 Hz |
| Auxiliary contact thermal current | 10 A |
| Auxiliary contact rating | A600 - P600 |
| AC-15 auxiliary contact current | 3 A at 230 V, 1.9 A at 400 V, 1.4 A at 500 V |
| DC-13 auxiliary contact current | 5.7 A at 24 V, 2.9 A at 48 V, 2.3 A at 60 V, 1.25 A at 110 V, 1.1 A at 125 V, 0.55 A at 220 V |
| Coil operating range | pick-up 80 to 110% Us, drop-out 20 to 55% Us |
| Coil consumption at 60 Hz | 75 VA inrush, 9 VA holding |
| Coil dissipation at holding | approx. 2.5 W |
| Terminal type | Screw connection |
| Main terminal tightening torque | 1.5 to 1.8 Nm |
| Coil terminal tightening torque | 0.8 to 1 Nm |
| Power terminal protection | IP20 when properly wired |
| Mounting type | 35 mm DIN rail or screw mounting |
| Operating position | Vertical plane, allowable plus or minus 30° |
| Package dimensions | 90 x 47 x 86 mm |
| Package volume | 363.78 cm³ |
| Weight | approx. 350 g |
| Mechanical durability | up to 20,000,000 cycles |
| Electrical life | up to 2,000,000 cycles depending on operating conditions |
| Operating temperature | -50 to +70 °C |
| Storage temperature | -60 to +80 °C |
| Maximum altitude | 3000 m |
| EAN | 8013975160091 |
| Certifications | CCC, EAC, cULus, UL 60335-2-40 LZGH A2L, CSA C22.2 No. 60335-2-40:22 LZGH A2L, UL 60335-2-89 LZGH A2L, CSA C22.2 No. 60335-2-89:21 LZGH A2L |
| Standards | IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1, IEC/EN 60335-2-89 |
| HS Code | 85365080 |
The Lovato BF0910A22060 is a three-pole IEC contactor used for controlling motors and electrical loads in industrial automation and machinery applications.
The BF0910A22060 uses a 220V AC 60Hz coil designed for industrial control circuits.
The contactor has an IEC AC-3 operating current rating of 9A and a thermal current rating of 25A.
Yes, it includes a built-in 1NO auxiliary contact for control feedback and switching functions.
The contactor can be installed using screw mounting or on a standard 35mm DIN rail inside electrical control panels.
Lovato BF series contactors are widely used by automation engineers and machine builders to deliver reliable motor switching, efficient control and long-lasting performance in industrial electrical systems.
