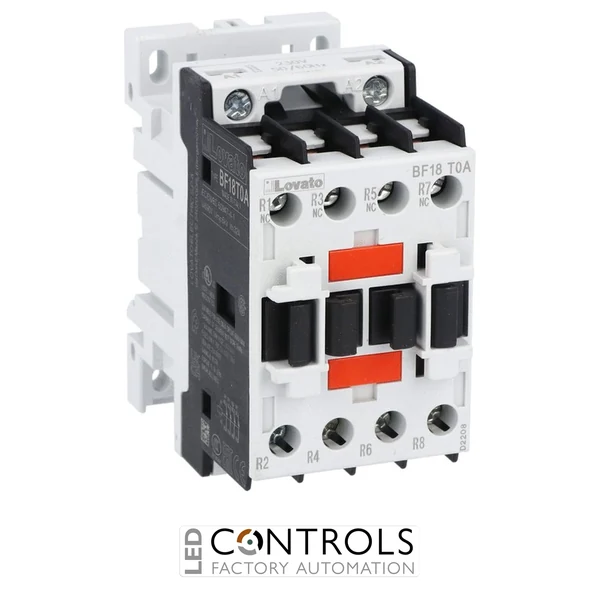

Lovato BF18T0A024 four-pole power contactor with 4NC contacts, 32 A AC-1 thermal current rating, 24 V AC 50/60 Hz coil, screw terminals and DIN rail or screw mounting for industrial control panels.
£101.82
The Lovato BF18T0A024 is a robust four-pole industrial contactor designed for reliable switching and control applications in electrical automation systems. Part of the trusted Lovato BF18 contactor series, it provides dependable performance for industrial control panels, machinery and electrical distribution applications.
This contactor features a 24 V AC 50/60 Hz coil, a 32 A AC-1 thermal current rating and a 4NC main contact configuration. Its compact design and flexible mounting options make it suitable for installation in modern electrical cabinets and industrial automation systems.
With an IEC AC-3 operating rating of 18 A at 400 V and motor switching capability up to approximately 7.5 kW, the BF18T0A024 is ideal for applications requiring dependable switching performance, including industrial machinery, control circuits and automation equipment.
The Lovato BF18T0A024 provides dependable electrical switching for industrial automation and control applications. Contactors in this range are designed to deliver long operational life, reliable mechanical performance and easy integration into electrical control assemblies.
The four-pole configuration with normally closed contacts makes this model suitable for applications where circuit interruption, interlocking or specialised control functions are required. Its compact BF series design enables efficient installation in industrial panels.
| Current | 32 A |
|---|---|
| Voltage | 24 V |
| Phase | Three Phase |
| Series | BF18 |
| Product type | Four-pole power contactor |
| Number of poles | 4 |
| Main contact configuration | 4NC |
| Coil type | AC coil, 50/60 Hz |
| Rated coil voltage | 24 V AC |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Operational frequency range | 25 to 400 Hz |
| IEC conventional free air thermal current Ith | 32 A at up to 40 °C |
| AC-1 operating current at up to 40 °C | 32 A |
| AC-1 operating current at up to 55 °C | 26 A |
| AC-1 operating current at up to 70 °C | 23 A |
| IEC operating current Ie AC-3 | 18 A at up to 440 V and 55 °C |
| AC-4 operating current at 400 V | 8.5 A |
| Main circuit connection | Screw terminals |
| Mounting type | Screw fixing or 35 mm DIN rail |
| Approximate weight | 362 g |
| EAN | 8013975162415 |
| Certifications | CCC, EAC, cULus |
| Applicable standards | IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1 and CSA C22.2 No. 60947-4-1 |
| HS Code | 85365080 |
The Lovato BF18T0A024 is a four-pole contactor used for industrial switching, automation control and electrical circuit applications.
The BF18T0A024 uses a 24 V AC 50/60 Hz coil for operation in compatible control systems.
The contactor has an 18 A AC-3 rating at 400 V and a 32 A AC-1 thermal current rating.
The BF18T0A024 features a four-pole configuration with four normally closed contacts.
The contactor can be installed using screw mounting or standard 35 mm DIN rail mounting.
Lovato BF series contactors provide reliable switching performance, flexible installation and durable solutions for industrial automation and electrical control systems worldwide.
