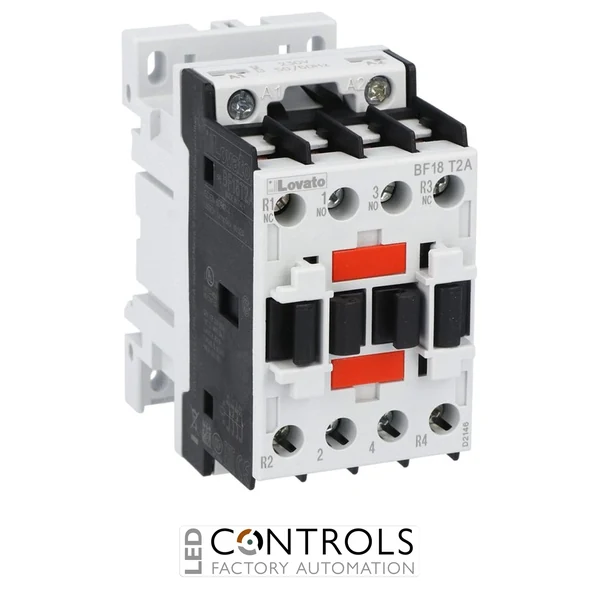

Lovato BF18T2A024 four-pole power contactor with 2NO + 2NC contacts, 32 A AC-1 thermal current rating, 18 A / 7.5 kW AC-3 rating at 400 V, 24 V AC 50/60 Hz coil, screw terminals and DIN rail or screw mounting for industrial control panels.
£101.82
The Lovato BF18T2A024 is a reliable four-pole industrial contactor designed for efficient switching and control of electrical loads in automation systems, machinery and industrial power applications. As part of the proven Lovato BF18 contactor series, this model features a 24VAC 50/60Hz coil and a versatile 2NO + 2NC contact configuration for flexible industrial control applications.
Designed for demanding industrial environments, the BF18T2A024 combines compact construction with excellent electrical endurance. Its four main poles provide dependable switching performance, making it suitable for OEM machinery, electrical control panels and industrial automation installations.
With an IEC AC-1 thermal current rating of 32 A and an AC-3 operational rating of 18 A at 400 V, the Lovato BF18T2A024 is ideal for motor control, industrial switching and automation applications requiring a dependable AC-operated contactor.
The Lovato BF18T2A024 provides dependable switching control for industrial electrical systems by allowing automation equipment to manage motors and loads safely. Its AC coil design makes it suitable for standard control circuits used throughout industrial installations.
The BF18 series offers high mechanical endurance, compact dimensions and flexible mounting options. Its robust construction ensures reliable operation in OEM machinery, production equipment and industrial control cabinets.
| Power | 7.5 kW |
|---|---|
| Current | 32 A |
| Voltage | 24 V |
| Phase | Three Phase |
| Series | BF18 |
| Product type | Four-pole power contactor |
| Number of poles | 4 |
| Main contact configuration | 2NO + 2NC |
| Coil type | AC coil, 50/60 Hz |
| Rated coil voltage | 24 V AC |
| Rated insulation voltage Ui | 690 V |
| IEC conventional free air thermal current Ith AC-1 | 32 A |
| Rated operation current Ie at AC-1, 400 V | 32 A |
| IEC operating current and power at 400 V AC-3 | 18 A / 7.5 kW |
| UL / CSA horsepower rating at 480 V | 10 HP |
| Power rating AC-1 | 36 kW |
| Contact voltage rating | 690 V |
| Auxiliary contacts | none integrated |
| Main circuit connection | Screw terminals |
| Terminal type | Screw |
| Mounting type | Screw fixing or 35 mm DIN rail |
| Approximate dimensions | 81 x 45 x 81 mm |
| Approximate unpackaged weight | 350 g |
| Package quantity | 1 |
| Package dimensions | 90 x 47 x 86 mm |
| Package volume | 363.78 cm³ |
| EAN | 8013975162057 |
| Certifications | CCC, EAC, cULus |
| Additional approvals | UL 60335-2-40 LZGH A2L, CSA C22.2 No. 60335-2-40:22 LZGH A2L, UL 60335-2-89 LZGH A2L and CSA C22.2 No. 60335-2-89:21 LZGH A2L |
| Applicable standards | IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 and IEC/EN 60335-2-89 |
| HS Code | 85365080 |
The Lovato BF18T2A024 is a four-pole industrial contactor used for switching and controlling electrical loads in automation and industrial systems.
The contactor operates with a 24VAC 50/60Hz coil.
The BF18T2A024 features a 2NO + 2NC four-pole configuration.
The contactor has an IEC AC-1 rating of 32 A and an AC-3 rating of 18 A at 400 V.
The contactor supports screw installation and mounting on a standard 35 mm DIN rail.
Lovato BF18 contactors are widely used in industrial automation and control systems where reliable switching performance, compact installation and long operational life are required.
