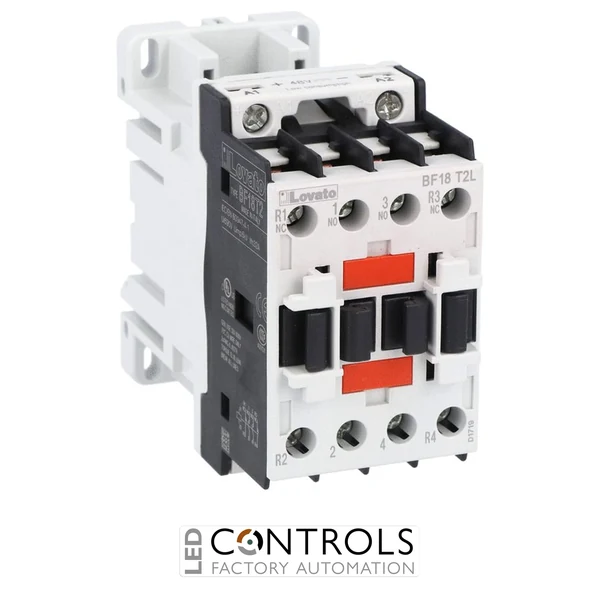

Lovato BF18T2L048 four-pole contactor with 2NO + 2NC contacts, 32 A AC-1 rating, 18 A AC-3 rating at 400 V, 48 V DC low-consumption coil and DIN rail or screw mounting for industrial control panels.
£122.58
The Lovato BF18T2L048 is a compact and dependable four-pole industrial contactor designed for reliable switching and control of motors, machinery and electrical loads in industrial automation systems. Part of the proven Lovato BF18 contactor series, it combines efficient low-consumption coil technology with robust switching performance for demanding industrial applications.
This contactor features a 48 V DC low-consumption coil and a flexible 2NO + 2NC four-pole contact configuration, making it suitable for motor starters, control panels, OEM machinery and industrial automation installations. Its compact construction allows easy integration into electrical cabinets and switchgear assemblies.
With an IEC AC-1 thermal current rating of 32 A and an AC-3 rating of 18 A at 400 V, the BF18T2L048 is suitable for motor control applications up to approximately 7.5 kW at 400 V AC. The unit supports screw terminal and 35 mm DIN rail mounting for straightforward installation in industrial control systems.
The Lovato BF18T2L048 provides dependable switching control for industrial motors and electrical loads. Contactors allow low-power control circuits to safely operate higher-power electrical systems, improving automation efficiency and protecting connected equipment.
The BF18 series is designed for machine builders, panel manufacturers and automation engineers requiring compact dimensions, reliable switching performance and compliance with international standards. Its low-consumption DC coil helps reduce control power requirements while maintaining dependable operation.
| Power | 7.5 kW |
|---|---|
| Current | 32 A |
| Voltage | 48 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | BF Contactors |
| Product type | Four-pole power contactor |
| Contact configuration | 2NO + 2NC |
| Number of poles | 4 |
| Coil type | DC low-consumption coil |
| Rated coil voltage | 48 V DC |
| DC coil pick-up voltage | 80 to 110% Us |
| DC coil drop-out voltage | 10 to 40% Us |
| Average coil consumption | 2.4 W inrush and holding |
| IEC thermal current Ith AC-1 at 40 °C | 32 A |
| IEC operating current AC-3 at 400 V | 18 A |
| Rated operational power AC-3 at 400 V | 7.5 kW |
| Rated operational power AC-1 at 400 V | 21 kW |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| UL / CSA horsepower rating at 480 V | 10 HP |
| Rated operational voltage UL | 600 V AC |
| Protection fuse | 32 A gG or 20 A aM |
| Making capacity | 180 A RMS |
| Terminal tightening torque | 1.5 to 1.8 Nm |
| Coil terminal tightening torque | 0.8 to 1 Nm |
| Maximum conductor section | 6 mm² flexible without lug |
| Mounting type | Screw fixing or 35 mm DIN rail |
| Protection rating | IP20 when correctly wired |
| Operating temperature | -50 °C to +70 °C |
| Storage temperature | -60 °C to +80 °C |
| Maximum altitude | 3000 m |
| Pollution degree | 3 |
| Weight | 500 g |
| Package dimensions | 93 x 48 x 110 mm |
| EAN | 8013975171981 |
| HS Code | 85365080 |
The BF18T2L048 is a four-pole industrial contactor used for switching and controlling motors and electrical loads in automation systems.
The contactor uses a 48 V DC low-consumption coil designed for efficient industrial control applications.
The contactor has an AC-1 rating of 32 A and an AC-3 rating of 18 A at 400 V.
The BF18T2L048 features a four-pole 2NO + 2NC contact arrangement.
The contactor can be installed using screw terminals or mounted on a standard 35 mm DIN rail.
Lovato BF18 contactors are widely used in industrial automation, motor control and electrical switching systems where reliable performance, compact installation and long service life are required.
