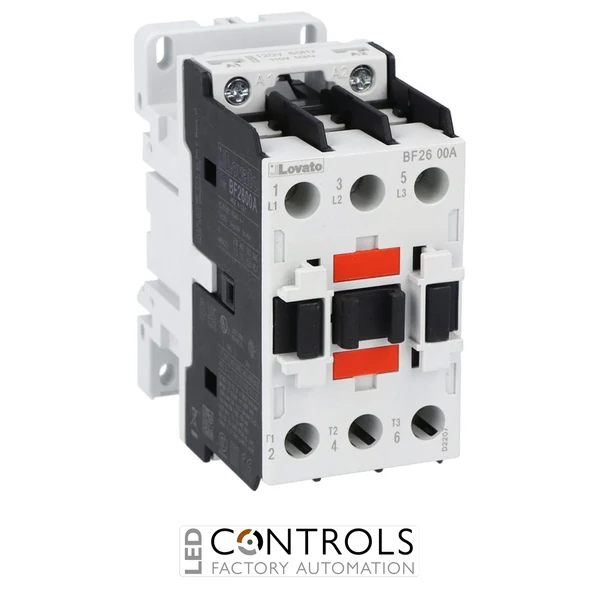

Lovato BF2600A22060 three-pole BF26 power contactor with 26 A AC-3 operating current, 45 A AC-1 thermal current, 220 V AC 60 Hz coil and screw or 35 mm DIN rail mounting for industrial motor control and automation panels.
£117.25
The Lovato BF2600A22060 is a reliable and compact three-pole industrial power contactor designed for efficient switching and control of motors, electrical loads and automation equipment. As part of the trusted Lovato BF series contactors, it provides dependable performance for industrial control panels, motor starters and low-voltage electrical distribution systems.
This contactor is engineered for demanding industrial environments where reliable switching, long electrical life and easy installation are essential. The BF series combines robust mechanical construction with flexible mounting options, making it suitable for integration into modern automation and electrical control systems.
With a 220 VAC 60 Hz coil, three main poles and an IEC AC-3 operational current rating of 26 A at 400 V, the Lovato BF2600A22060 is suitable for controlling motors up to approximately 13 kW in industrial applications. Its compact design supports both screw mounting and 35 mm DIN rail installation.
Industrial contactors such as the Lovato BF2600A22060 provide safe and efficient control of electrical motors by allowing remote switching of high-power circuits through a low-power control signal. This makes them essential components in motor starters, automation panels and industrial machinery.
The Lovato BF series is designed for professional electrical installations requiring dependable operation, straightforward integration and compatibility with additional accessories such as auxiliary contacts and protection devices.
| Power | 13 kW |
|---|---|
| Current | 26 A |
| Voltage | 220 V |
| Phase | Three Phase |
| Series | BF Series |
| Product designation | Power contactor |
| Product type designation | BF26 |
| Number of poles | 3 |
| Contact configuration | 3 normally open main power poles |
| Coil type | AC coil, 60 Hz |
| Rated coil voltage | 220 V AC |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Operational frequency | 25 to 400 Hz |
| IEC conventional free air thermal current Ith | 45 A at ≤40 °C |
| IEC AC-1 operating current | 45 A at ≤40 °C, 36 A at ≤55 °C, 32 A at ≤70 °C |
| IEC AC-3 operating current | 26 A at ≤440 V and ≤55 °C |
| IEC AC-4 operating current at 400 V | 11.5 A |
| Rated operational power AC-3 at 230 V | 7.3 kW |
| Rated operational power AC-3 at 400 V | 13 kW |
| Rated operational power AC-3 at 415/440 V | 14 kW |
| Rated operational power AC-3 at 500 V | 15.6 kW |
| Rated operational power AC-3 at 690 V | 18.5 kW |
| Rated operational power AC-1 at 400 V | 30 kW |
| Short-time allowable current for 10 s | 210 A |
| Protection fuse gG | 50 A |
| Protection fuse aM | 32 A |
| Making capacity | 260 A RMS |
| Breaking capacity at 440 V | 208 A |
| Power terminal protection | IP20 when properly wired |
| Terminal tightening torque | 2.5 to 3 Nm |
| Maximum number of wires simultaneously connectable | 2 |
| Flexible conductor section without lug | 2.5 to 16 mm² |
| Mounting type | Screw fixing or 35 mm DIN rail |
| Mechanical life | 20,000,000 cycles |
| Electrical life | 1,600,000 cycles |
| AC coil pick-up range | 80 to 110% Us |
| AC coil drop-out range | 20 to 55% Us |
| Average coil consumption at 20 °C | 75 VA inrush, 9 VA holding |
| UL rated operational voltage | 600 V AC |
| UL full-load current at 480 V | 21 A |
| UL full-load current at 600 V | 22 A |
| UL/CSA horsepower rating at 200/208 V | 7.5 HP |
| UL/CSA horsepower rating at 220/240 V | 7.5 HP |
| UL/CSA horsepower rating at 460/480 V | 15 HP |
| UL/CSA horsepower rating at 575/600 V | 20 HP |
| Operating temperature | -50 to +70 °C |
| Storage temperature | -60 to +80 °C |
| Maximum altitude | 3000 m |
| Pollution degree | 3 |
| Weight | 418 g |
| Package dimensions | 88 × 56 × 93 mm |
| EAN | 8013975161050 |
| Standards | IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1 and CSA C22.2 No. 60947-4-1 |
| HS Code | 85365080 |
The BF2600A22060 is a three-pole power contactor used for switching motors and electrical loads in industrial automation and control systems.
The contactor operates with a 220 VAC 60 Hz AC control coil.
The contactor is rated for approximately 13 kW at 400 V AC-3 motor switching applications.
The BF2600A22060 features a three-pole main contact configuration.
The contactor supports both screw mounting and 35 mm DIN rail mounting for flexible installation.
Lovato BF series contactors are widely used by electrical engineers and automation professionals to provide reliable motor switching, efficient control and long-term performance in industrial systems.
