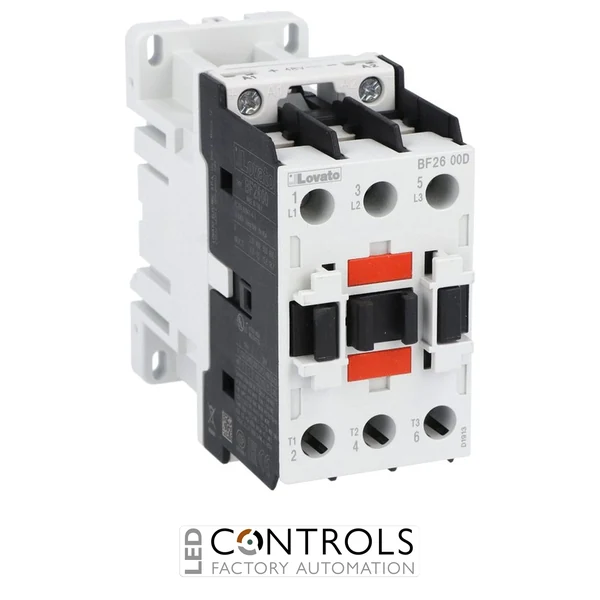

Lovato BF2600D012 three-pole BF26 power contactor with 26 A AC-3 operating current, 45 A AC-1 thermal current, 12 V DC coil and screw or 35 mm DIN rail mounting for industrial motor control and automation panels.
£180.39
The Lovato BF2600D012 is a compact and reliable three-pole industrial power contactor designed for efficient switching and control of motors, electrical loads and automation equipment. As part of the trusted Lovato BF series contactors, it provides dependable performance for industrial control panels, motor starters and low-voltage electrical distribution systems.
This contactor is designed for demanding industrial applications where reliable switching, long electrical life and flexible installation are required. The BF series combines robust mechanical construction with advanced electrical performance, making it suitable for modern automation systems, motor control panels and industrial machinery.
With a 12 VDC control coil, three main poles and an IEC AC-3 operational current rating of 26 A at 400 V, the Lovato BF2600D012 is suitable for controlling motors up to approximately 13 kW in industrial applications. The compact design supports both screw mounting and 35 mm DIN rail installation for convenient panel integration.
Industrial contactors such as the Lovato BF2600D012 provide safe and efficient control of motors by allowing high-power circuits to be switched using low-power DC control signals. They are essential components in motor starters, automation cabinets and industrial machinery.
The Lovato BF series is designed for electrical engineers, machine builders and panel manufacturers requiring dependable switching performance, easy installation and compatibility with industrial control accessories.
| Power | 13 kW |
|---|---|
| Current | 26 A |
| Voltage | 12 V |
| Phase | Three Phase |
| Series | BF Series |
| Product designation | Power contactor |
| Product type designation | BF26 |
| Number of poles | 3 |
| Contact configuration | 3 normally open main power poles |
| Coil type | DC coil |
| Rated coil voltage | 12 V DC |
| DC operating voltage pick-up range | 70 to 125% Us |
| DC operating voltage drop-out range | 10 to 40% Us |
| Average coil consumption at 20 °C | 5.4 W inrush, 5.4 W holding |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Operational frequency | 25 to 400 Hz |
| IEC conventional free air thermal current Ith | 45 A at ≤40 °C |
| IEC AC-1 operating current | 45 A at ≤40 °C, 36 A at ≤55 °C, 32 A at ≤70 °C |
| IEC AC-3 operating current | 26 A at ≤440 V and ≤55 °C |
| IEC AC-4 operating current at 400 V | 11.5 A |
| Rated operational power AC-3 at 230 V | 7.3 kW |
| Rated operational power AC-3 at 400 V | 13 kW |
| Rated operational power AC-3 at 415/440 V | 14 kW |
| Rated operational power AC-3 at 500 V | 15.6 kW |
| Rated operational power AC-3 at 690 V | 18.5 kW |
| Rated operational power AC-1 at 400 V | 30 kW |
| Short-time allowable current for 10 s | 210 A |
| Protection fuse gG | 50 A |
| Protection fuse aM | 32 A |
| Making capacity | 260 A RMS |
| Breaking capacity at 440 V | 208 A |
| Resistance per pole | 2 mΩ average |
| Power terminal protection | IP20 when correctly wired |
| Terminal tightening torque | 2.5 to 3 Nm |
| Coil terminal tightening torque | 0.8 to 1 Nm |
| Maximum number of wires simultaneously connectable | 2 |
| Flexible conductor section without lug | 2.5 to 16 mm² |
| Mounting type | Screw fixing or 35 mm DIN rail |
| Mechanical life | 20,000,000 cycles |
| Electrical life | 1,600,000 cycles |
| Maximum mechanical operating frequency | 3600 cycles per hour |
| UL rated operational voltage | 600 V AC |
| UL full-load current at 480 V | 21 A |
| UL full-load current at 600 V | 22 A |
| UL/CSA horsepower rating at 200/208 V | 7.5 HP |
| UL/CSA horsepower rating at 220/240 V | 7.5 HP |
| UL/CSA horsepower rating at 460/480 V | 15 HP |
| UL/CSA horsepower rating at 575/600 V | 20 HP |
| Operating temperature | -50 to +70 °C |
| Storage temperature | -60 to +80 °C |
| Maximum altitude | 3000 m |
| Pollution degree | 3 |
| EMC compatibility | Yes |
| Weight | 560 g |
| Package dimensions | 93 × 48 × 110 mm |
| EAN | 8013975166536 |
| Certifications | CCC, EAC, cULus and applicable UL/CSA listings |
| Standards | IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 and IEC/EN 60335-2-89 |
| HS Code | 85365080 |
The BF2600D012 is a three-pole power contactor used for switching motors and electrical loads in industrial automation and control systems.
The contactor uses a 12 VDC DC control coil.
The contactor is rated for approximately 13 kW at 400 V AC-3 motor switching applications.
The BF2600D012 features a three-pole main contact configuration.
The contactor supports both screw mounting and 35 mm DIN rail mounting for flexible installation.
Lovato BF series contactors are widely used by electrical engineers and automation professionals to provide reliable motor switching, efficient control and long-term performance in industrial systems.
