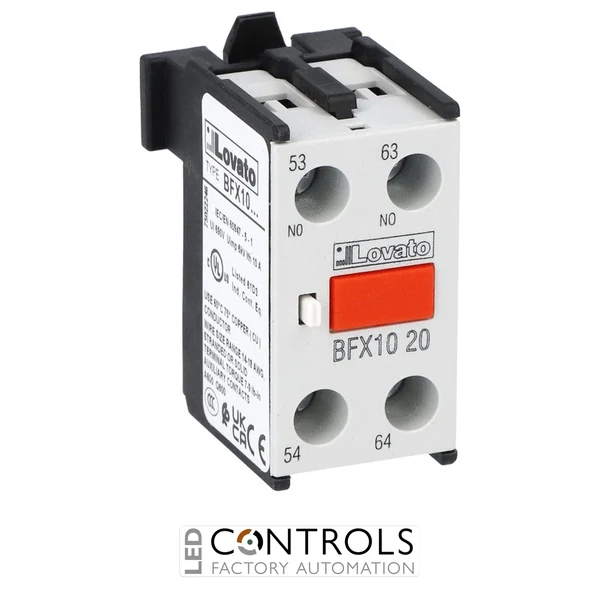

Lovato BFX1020 auxiliary contact block with two normally open contacts designed for Lovato BF series contactors in industrial control applications.
£11.40
The Lovato BFX1020 is a compact auxiliary contact block designed for Lovato BF series contactors, providing additional switching and signalling capability for industrial control systems. Featuring a 2NO contact configuration, it allows contactors to provide extra normally open auxiliary functions for automation and monitoring applications.
Designed for front centre mounting, the BFX1020 provides a simple method of expanding compatible contactor functionality without replacing the main switching device. Its screw terminal connection enables reliable installation within industrial control panels and electrical systems.
The BFX1020 is suitable for BF00, BF09 to BF150 series contactors and provides a rated insulation voltage of 690 V. With a 10 A conventional thermal current rating and compact construction, it is suitable for a wide range of industrial control and automation applications.
Auxiliary contact blocks provide additional electrical contacts that enable contactors to interface with control circuits, signalling systems and automation equipment. They are commonly used for status indication, logic control and electrical switching expansion.
The Lovato BFX1020 adds two normally open auxiliary contacts to compatible BF series contactors. Its compact front-mounted design and screw terminal connections provide a practical solution for industrial control panel applications.
| HS Code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BFX |
| Model | BFX1020 |
| Product type | Auxiliary contact block |
| Contact configuration | 2NO |
| Number of poles | 2 |
| Mounting type | Front centre mounting |
| Terminal type | Screw terminals |
| Compatible contactors | BF00, BF09 to BF150 series |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Conventional free-air thermal current Ith | 10 A |
| IEC/EN 60947-5-1 designation | A600 - Q600 |
| Operating current AC-15 at 230 V | 3 A |
| Operating current AC-15 at 400 V | 1.9 A |
| Operating current AC-15 at 500 V | 1.4 A |
| Operating current DC-13 at 24 V | 3 A |
| Operating current DC-13 at 110 V | 0.6 A |
| Operating current DC-13 at 220 V | 0.27 A |
| Protection rating | IP20 |
| Operating temperature | -50 to 70 °C |
| Storage temperature | -60 to 80 °C |
| Maximum altitude | 3000 m |
| Weight | approx. 48 g |
The BFX1020 is an auxiliary contact block used to add additional normally open contacts to compatible Lovato BF series contactors.
The BFX1020 features a 2NO normally open auxiliary contact configuration.
The BFX1020 is designed for use with Lovato BF00, BF09 to BF150 series contactors.
The BFX1020 uses front centre mounting with screw terminal connections.
The BFX1020 has a rated insulation voltage of 690 V.
Lovato Electric BFX auxiliary contact blocks provide reliable contact expansion and control flexibility for industrial automation systems using BF series contactors.
