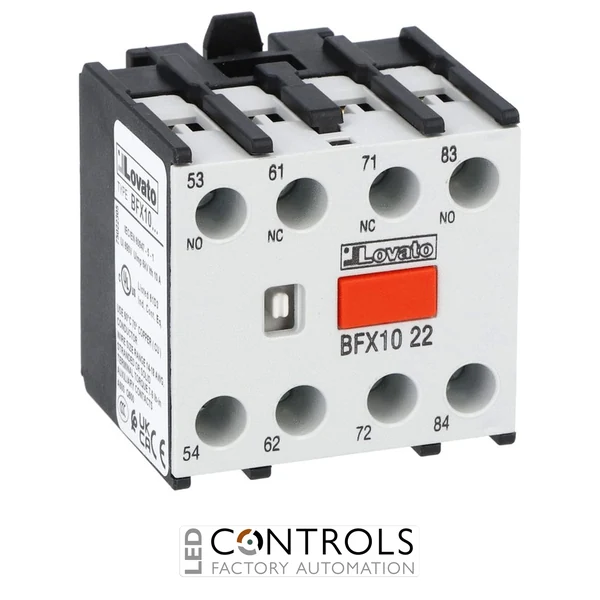

Lovato BFX1022 four-pole front centre mounted auxiliary contact block with 2NO + 2NC contacts, screw terminals, 10 A thermal current rating and compatibility with BF00 and BF09–BF150 series contactors.
£28.19
The Lovato BFX1022 is a compact auxiliary contact block designed for compatible Lovato BF series contactors. Featuring a 2NO + 2NC contact configuration, it provides four auxiliary poles for control, signalling, feedback and interlocking functions within industrial motor control and automation systems.
Designed for front centre mounting, the BFX1022 is compatible with Lovato BF00 and BF09 through BF150 series contactors. Its screw terminals provide secure control-circuit connections, while the auxiliary contacts incorporate mirror and mechanically linked contact functions for applications where reliable contact status is important.
With a conventional free-air thermal current rating of 10 A, rated insulation voltage of 690 V and rated impulse withstand voltage of 6 kV, the BFX1022 provides robust electrical characteristics for industrial control applications. Its compact format allows additional auxiliary switching functionality to be added directly to compatible BF contactors.
Auxiliary contact blocks extend the control and signalling capabilities of contactors without switching the main power circuit. They can provide contactor status feedback, electrical interlocking and additional switching points for PLC inputs, indication devices and other control components.
The Lovato BFX1022 combines two normally open and two normally closed contacts in a single front-mounted accessory. Its mirror and mechanically linked contact functions make it particularly useful where dependable correspondence between contact states is required within industrial control systems.
| HS Code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BFX10 |
| Model | BFX1022 |
| Product type | Auxiliary contact block |
| Number of poles | 4 |
| Contact configuration | 2NO + 2NC |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Conventional free-air thermal current Ith | 10 A at ≤40 °C |
| IEC/EN 60947-5-1 designation | A600 / Q600 |
| AC-15 operating current at 230 V | 3 A |
| AC-15 operating current at 400 V | 1.9 A |
| DC-13 operating current at 24 V | 3 A |
| Mounting type | Front centre mounting |
| Terminal type | Screw |
| Compatible contactors | BF00; BF09–BF150 series |
| Flexible conductor section | 0.75–2.5 mm² |
| Operating temperature | -50 to +70 °C |
| Storage temperature | -60 to +80 °C |
| Maximum altitude | 3000 m |
| Weight | 48 g |
The BFX1022 adds auxiliary switching contacts to compatible Lovato BF series contactors for control, signalling, feedback and electrical interlocking applications.
The BFX1022 provides 2 normally open and 2 normally closed contacts, giving a total of four auxiliary poles.
The BFX1022 is designed for Lovato BF00 and BF09 through BF150 series contactors.
The BFX1022 uses front centre mounting and attaches to compatible Lovato BF series contactors.
The BFX1022 has an IEC conventional free-air thermal current rating of 10 A at temperatures up to 40 °C.
Lovato BFX auxiliary contact blocks provide additional control and signalling functionality for compatible BF series contactors, supporting reliable feedback, interlocking and automation circuits in industrial electrical systems.
