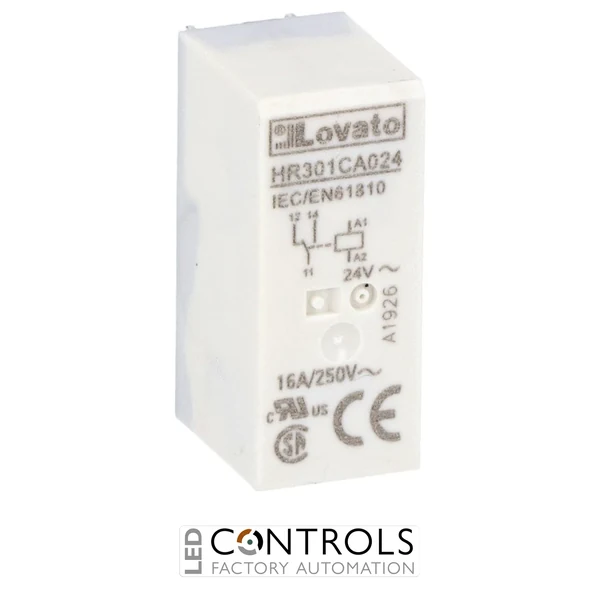

The Lovato HR301CA024 miniature relay delivers dependable switching for control panels and OEM builds.
£5.28
The Lovato HR301CA024 is a compact miniature electromagnetic relay designed for reliable switching applications in industrial automation, electrical control panels, and OEM equipment. Featuring a 24VAC control coil, a 16A rated thermal current, and a 1 changeover (C/O) contact, this HR30 series relay provides dependable control and switching performance in space-saving installations.
The Lovato HR301CA024 miniature relay is engineered for general-purpose switching applications where compact size and high reliability are required. The relay features a plug-in design for compatible Lovato sockets, allowing simplified installation and replacement in automation systems. It supports installation on suitable relay sockets including HR5XS2 series bases and is suitable for industrial control circuits.
The Lovato HR301CA024 combines compact dimensions with dependable switching capability, making it suitable for professional control applications where reliability and efficient panel design are important. Its 16A contact rating, durable AgSnO₂ contacts, and compatibility with Lovato relay sockets provide a practical solution for industrial switching requirements.
| Current | 16 A |
|---|---|
| Specification Details Brand | Lovato Electric |
| Part Number | HR301CA024 |
| Relay Series | HR30 |
| Relay Type | Electromagnetic miniature relay |
| Coil Voltage | 24VAC |
| Contact Configuration | 1 C/O (changeover) |
| Rated Current | 16A |
| Rated Insulation Voltage | 250V |
| Rated Impulse Withstand Voltage | 6kV |
| Maximum Instantaneous Current | 60A |
| Contact Material | AgSnO₂ |
| Mechanical Life | 10,000,000 operations |
| Electrical Life AC-1 | 50,000 operations |
| Operating Temperature | -40...+70°C |
| Weight | 15.7g |
| HS Code | 85365080 |
The Lovato HR301CA024 is a miniature electromagnetic relay with a 24VAC coil, one changeover contact, and a 16A rated thermal current.
The HR301CA024 uses a 24VAC relay control coil.
The relay has one changeover contact configuration (1 C/O or SPDT).
