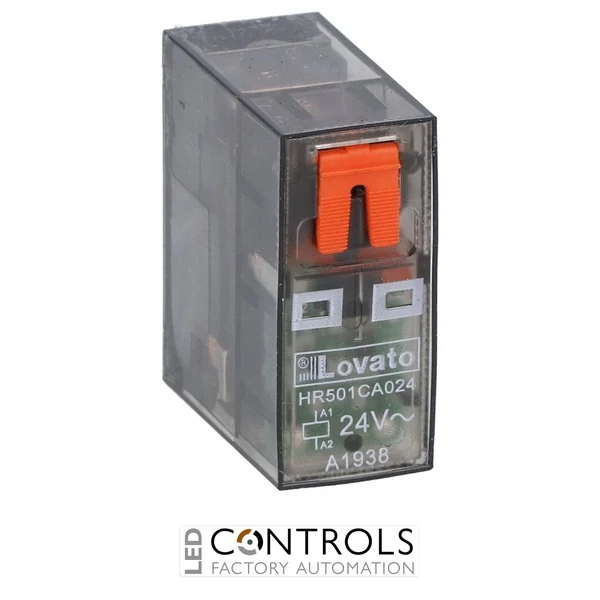

The Lovato HR501CA024 miniature relay delivers dependable switching in a compact footprint for OEMs and panel builders.
£8.14
The Lovato HR501CA024 is a compact miniature electromagnetic relay designed for reliable switching applications in industrial automation, control panels, and electrical equipment. Featuring a 24VAC control coil, a 16A rated thermal current, and a 1 changeover (1 C/O / SPDT) contact, this HR501C series relay includes an integrated LED state indicator and mechanical actuator for improved status visibility and easier maintenance. The relay is designed for installation on compatible Lovato HR5XS2 sockets.
The Lovato HR501CA024 miniature relay provides dependable electromechanical switching for industrial and automation systems where compact size and reliable performance are required. The built-in LED indicator allows quick visual identification of relay status, while the mechanical actuator simplifies testing and commissioning during panel installation. The relay offers a 24VAC coil supply and one changeover contact for flexible circuit switching.
The Lovato HR501CA024 combines reliable relay switching with convenient status indication and manual testing capability. Its 16A contact rating, compact construction, LED indication, and compatibility with Lovato socket systems make it a practical solution for professional industrial control installations.
| Current | 16 A |
|---|---|
| Specification Details Brand | Lovato Electric |
| Part Number | HR501CA024 |
| Relay Series | HR501C |
| Relay Type | Miniature electromagnetic relay |
| Coil Voltage | 24VAC |
| Contact Configuration | 1 C/O (SPDT) |
| Rated Current | 16A |
| Socket Rated Current | 10A |
| LED Indicator | Yes |
| Mechanical Actuator | Yes |
| Mounting | Plug-in socket mounting |
| Compatible Socket | HR5XS2 series |
| Weight | 39.41g |
| HS Code | 85365080 |
The Lovato HR501CA024 is a miniature electromagnetic relay with a 24VAC coil, one changeover contact, LED status indicator, and a 16A rated thermal current.
The HR501CA024 uses a 24VAC control coil.
The relay has one changeover contact configuration (1 C/O or SPDT).
