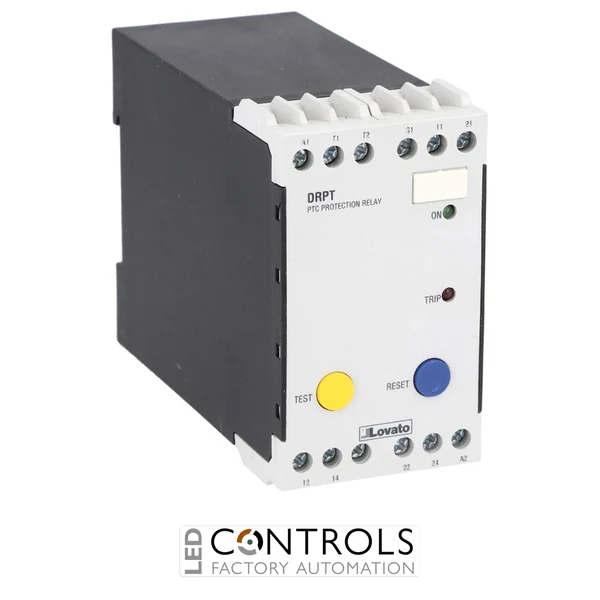

Lovato 31DRPT110 is a 110 V AC 50/60 Hz thermistor motor protection relay with manual or automatic reset, a test button and 35 mm DIN rail mounting.
£257.86
The Lovato 31DRPT110 is a thermistor motor protection relay designed for monitoring motor temperature through compatible thermistor protection circuits. Operating from a 110 V AC, 50/60 Hz supply, it provides a dedicated motor protection solution for industrial machinery, control panels and motor starting systems.
Part of the Lovato DRPT thermistor protection relay range, the 31DRPT110 offers selectable manual or automatic reset and incorporates a test button for functional checking. The relay is designed for standard 35 mm DIN rail mounting, allowing straightforward installation within industrial electrical enclosures.
The 31DRPT110 has a 250 V rated insulation voltage between supply, inputs and outputs, together with a 4 kV rated impulse withstand voltage. Screw terminals, IP20 frontal protection and flexible installation orientation support practical integration into industrial motor protection systems.
Thermistor protection relays are used with temperature-sensitive motor protection circuits to monitor thermal conditions within motors and other electrical equipment. This provides temperature-based protection that can complement conventional current-based motor protection methods.
The Lovato 31DRPT110 combines thermistor protection functionality with manual or automatic resetting and a test button. Its 110 V AC supply and 35 mm DIN rail mounting make it suitable for integration into compatible industrial motor control and protection systems.
| Manufacturer | Lovato Electric |
|---|---|
| Series | DRPT |
| Model | 31DRPT110 |
| Product type | Thermistor protection relay |
| Rated supply voltage | 110 V AC |
| Rated frequency | 50/60 Hz |
| Reset mode | Manual or automatic |
| Test button | Yes |
| Trip indicator | No |
| Phase failure detection | No |
| Rated insulation voltage (Ui) | 250 V between supply, inputs and outputs |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Frontal protection rating | IP20 |
| Pollution degree | 3 |
| Terminal type | Screw |
| Terminal tightening torque | 0.8–1.2 Nm |
| Maximum flexible conductor section without lug | 1.5 mm² |
| Maximum flexible conductor section with lug | 1.5 mm² |
| Storage temperature | -30 to +80 °C |
| Compensation temperature | -10 to +60 °C |
| Operating position | Any |
| Mounting | 35 mm DIN rail |
| Weight | 294 g |
| Package dimensions | 84 × 50 × 107 mm |
| Package volume | 449.4 cm³ |
| Quantity per package | 1 |
| EAN13 | 8013975601013 |
| HS code | 85389091 |
| Conformity | IEC/EN 60255-5 |
The Lovato 31DRPT110 is a thermistor protection relay designed for temperature-based motor protection applications.
The 31DRPT110 operates from a 110 V AC, 50/60 Hz supply.
Yes. The 31DRPT110 supports both manual and automatic reset modes.
The relay is designed for mounting on a standard 35 mm DIN rail.
The Lovato 31DRPT110 has an IP20 frontal protection rating.
The Lovato 31DRPT110 provides thermistor-based motor protection with a 110 V AC supply, manual or automatic resetting and standard 35 mm DIN rail mounting for industrial control applications.
