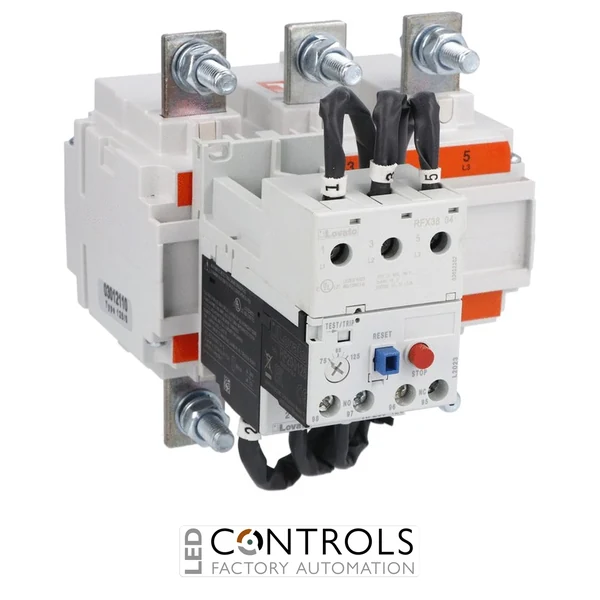

Lovato RF200100 is a three-pole Class 10A thermal motor protection relay with a 60–100 A adjustable operational current range, phase-failure sensitivity and selectable manual or automatic resetting.
£460.85
The Lovato RF200100 is a three-pole thermal motor protection relay with an adjustable operational current range of 60–100 A. Designed for three-phase motor protection, it provides overload protection with phase-failure/single-phase sensitivity and is suitable for use with Lovato B series contactor applications.
Part of the Lovato RF200 motor protection relay range, the RF200100 combines Class 10A tripping with selectable manual or automatic resetting. A built-in test button and trip indicator assist commissioning and maintenance, while one normally open and one normally closed auxiliary contact provide interfaces for control and signalling circuits.
The RF200100 has a 690 V rated operational voltage, 1000 V rated insulation voltage and 6 kV rated impulse withstand voltage. Its screw-mounted construction and robust power terminals make it suitable for higher-current industrial motor control and protection installations.
Thermal overload relays protect motors against sustained overload conditions that can cause excessive heating and damage. An adjustable current setting allows the protection threshold to be matched to the motor operating current, while phase-failure sensitivity provides additional protection where an abnormal phase condition occurs.
The Lovato RF200100 combines a 60–100 A adjustment range with Class 10A tripping, selectable manual or automatic resetting, a test button and trip indication. Its 690 V rated operational voltage and screw-mounted construction make it suitable for higher-current industrial motor control systems.
| HS Code | 85364900 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | RF200 |
| Model | RF200100 |
| Product type | Thermal motor protection relay |
| Number of poles | 3 |
| Release type | Thermal |
| Operational current range | 60–100 A |
| Tripping class | 10A |
| Reset mode | Manual or automatic |
| Phase-failure/single-phase sensitivity | Yes |
| Test button | Yes |
| Trip indicator | Yes |
| Auxiliary contacts | 1 NO + 1 NC |
| Rated operational voltage | 690 V |
| Rated insulation voltage (Ui) | 1000 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Operational frequency | 50–60 Hz |
| Frontal protection rating | IP20 |
| Overvoltage category | III |
| Pollution degree | 3 |
| gG protection fuse | 160 A |
| aM protection fuse | 100 A |
| Power terminal type | Screw and flat washer |
| Power terminal screw | M8 |
| Power terminal tightening torque | 18 Nm |
| Auxiliary rated insulation voltage | 690 V |
| Auxiliary rated operational voltage | 690 V |
| Auxiliary conventional free-air thermal current | 10 A at ≤40 °C |
| Operating temperature | -25 to +60 °C |
| Storage temperature | -50 to +70 °C |
| Temperature compensation range | -20 to +60 °C |
| Maximum altitude | 3000 m |
| Normal operating position | Vertical plane |
| Allowable mounting inclination | ±30° |
| Fixing | Screw |
| For contactor series | B |
| Weight | 2135 g |
| Package dimensions | 135 × 130 × 175 mm |
| Quantity per package | 1 |
| EAN13 | 8013975169506 |
| Conformity | IEC/EN 60947-1, IEC/EN 60947-4-1, UL508, CSA C22.2 No. 14 |
The Lovato RF200100 has an adjustable operational current range of 60–100 A.
The RF200100 has a Class 10A thermal overload tripping characteristic.
Yes. The RF200100 supports selectable manual or automatic reset.
Yes. The RF200100 is specified as a phase-failure/single-phase-sensitive thermal overload relay.
The RF200100 incorporates one normally open and one normally closed auxiliary contact for integration with motor control and signalling circuits.
The Lovato RF200100 provides adjustable 60–100 A thermal overload protection with Class 10A tripping, phase-failure sensitivity and manual or automatic resetting for higher-current industrial motor control applications.
